Cub Cadet 7272

Last Updated: June 2024

Overview

The Cub Cadet 7272 is a compact utility tractor that features a powerful Mitsubishi K3M engine. This diesel-powered, liquid-cooled, 3-cylinder overhead valve engine provides a power output of 27 hp with a rated RPM of 2500. The tractor has a 2WD chassis and utilizes hydrostatic power steering for easy control. Its partially-synchronized 9-speed gearbox also allows for efficient operation. The tractor boasts an open center hydraulic system and is outfitted with notably robust Ag and Lawn/Turf tires. Its compact size, with a length of 115 inches, width of 54 inches, and a height of 84.3 inches, further enhances its utility, making it suitable for a wide range of tasks.

Key Specifications

Category: Utility

Power Output: 27

Transmission: Partially-synchronized gear

Drive Type: 2WD

Operating Weight: 2533

Fuel Type: Diesel

Image Gallery

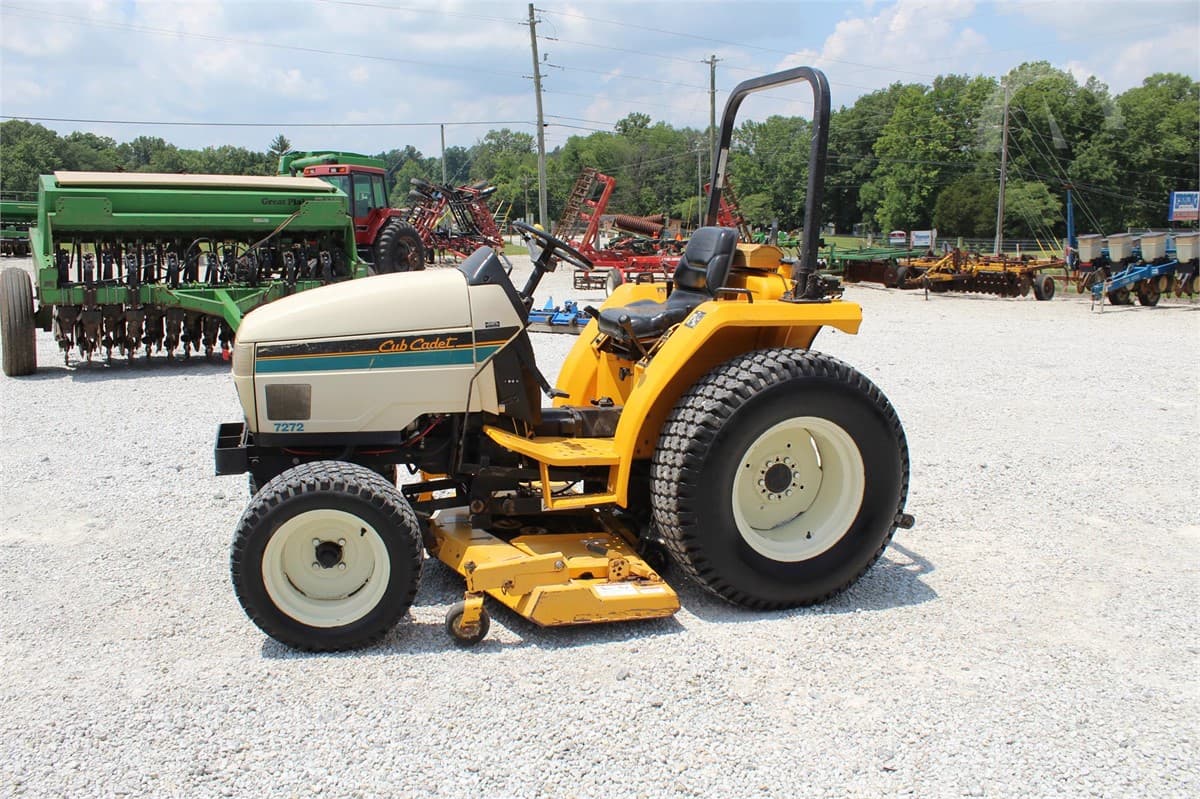

Cub Cadet 7272 Tractor

Cub Cadet 7272 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Operating Weight

Below Average

Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3M
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: Overhead Valve (OHV)
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.307
Stroke (in): 3.543
Rated RPM: 2500
Power Output (hp): 27

Transmission

Type: Partially-synchronized gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 115
Width (in): 54
Height (in): 84.3
Operating Weight (lb): 2533

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 6.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag front: 9.5L-15SL F2M, Ag Rear: 12.4-24, Lawn/Turf front: 25x10.50-15, Lawn/Turf rear: 41x14.00-20
Manufacture - End Year: -
Hitch Type: Rear Type: I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric Starter, 12 volts
Brake Type: -
Hydraulic System Type: Open center
