Cub Cadet 7260

Last Updated: June 2024

Overview

The Cub Cadet 7260 is a dependable tractor powered by a Mitsubishi liquid-cooled diesel engine. It features a three-cylinder engine with a displacement of 80.43 cubic inches and a power output of 26 horsepower. The engine runs at a rated RPM of 2600 and utilizes a coolant capacity of 6.7 quarts. The tractor's partially synchronized gear transmission provides 9 forward gears and 3 reverse gears. The tractor measures 115 inches in length, 51.8 inches in width, and 83.5 inches in height. The operating weight of the Cub Cadet 7260 is approximately 2315 lbs. It possesses a rear hitch category I and utilizes an open center hydraulic system. Other specific details, such as tire measurements, starter type, PTO type, and brake type, are not explicitly mentioned.

Key Specifications

Power Output: 26

Transmission: partially synchronized gear

Operating Weight: 2315

Fuel Type: diesel

Image Gallery

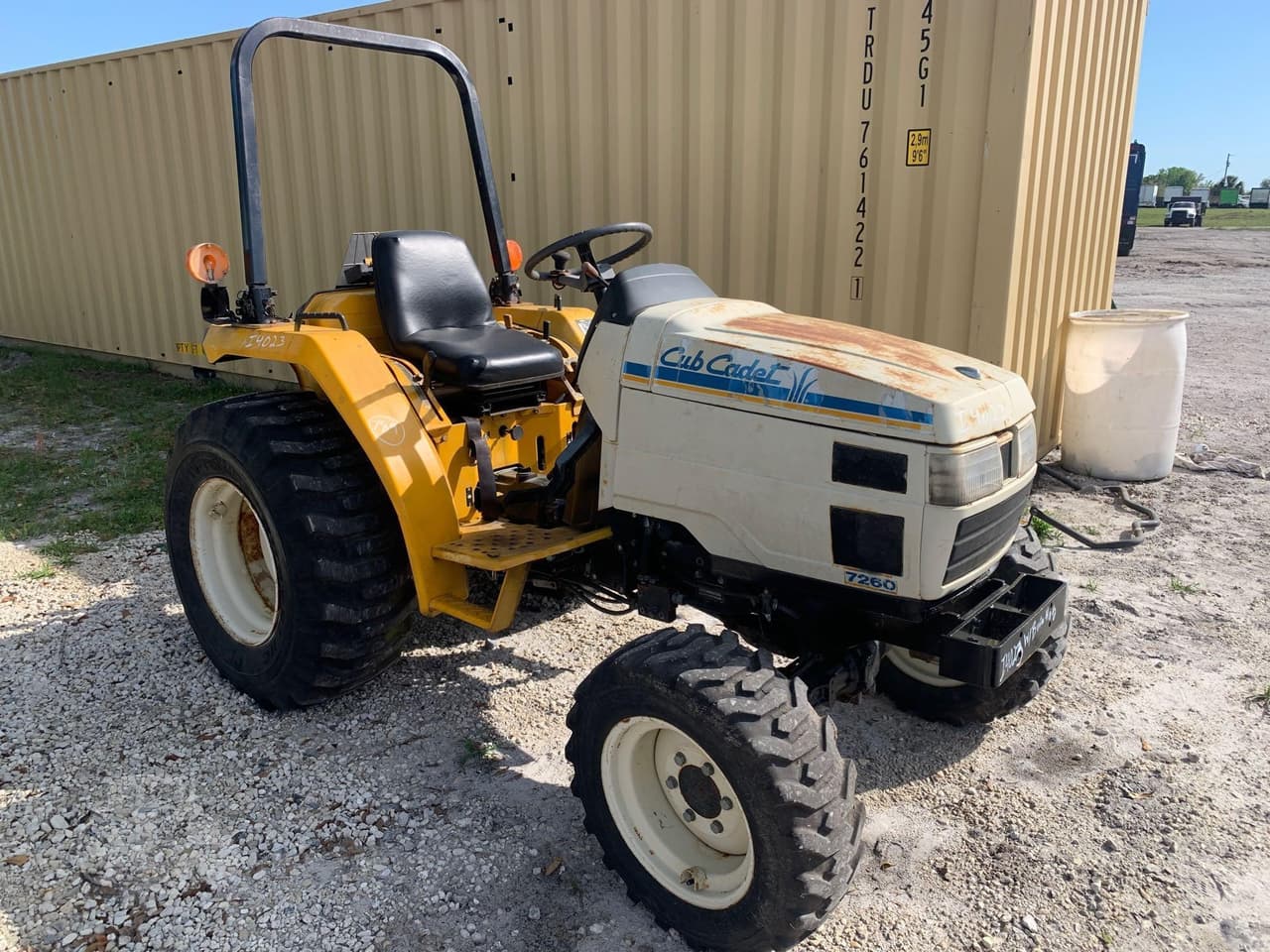

Cub Cadet 7260 Tractor

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 80.43
Bore (in): 3.071
Stroke (in): 3.622
Rated RPM: 2600
Power Output (hp): 26

Transmission

Type: partially synchronized gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 115
Width (in): 51.8
Height (in): 83.5
Operating Weight (lb): 2315

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 6.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: open center
