Cub Cadet 7235

Last Updated: June 2024

Overview

The Cub Cadet 7235 is a compact utility tractor, offering a powerful performance with its 23 horsepower, 3-cylinder Mitsubishi K3G diesel engine. The engine features overhead valve cylinders and uses direct injection induction. It is cooled using 5.6 quarts of coolant which can be replaced every 1000 hours. The transmission is hydrostatic with infinite forward and reverse gears across 3 ranges. It has a wheelbase of 65 inches and can operate at a maximum weight of 2538 lbs. The tractor stands 83.5 inches tall with a length of 115 inches and a width of 51.8 inches. The steering system is hydrostatic and the hydraulic system is of open center type. It sports multiple types of tires for different needs - Ag front 6.70-15, Ag rear 11.2-24, Lawn/turf front 25x8.50-14, Lawn/turf rear 13.6-16.

Key Specifications

Category: Utility

Power Output: 23

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2538

Fuel Type: Diesel

Image Gallery

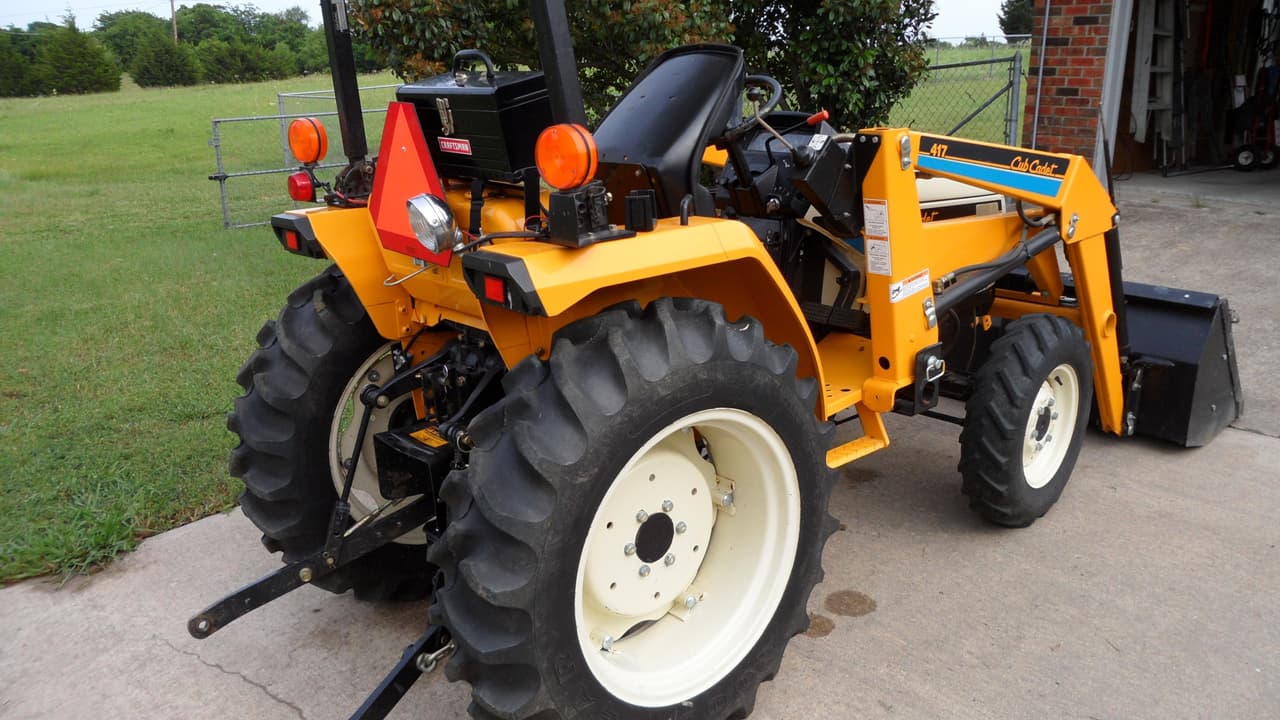

Cub Cadet 7235 Tractor

Cub Cadet 7235 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Operating Weight

Below Average

Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3G
Cooling Type: Liquid-cooled
Cylinder Orientation: Overhead valve (OHV)
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct Injection
Cylinders: 3
Displacement (ci): 75.4
Bore (in): 3.228
Stroke (in): 3.071
Rated RPM: 2500
Power Output (hp): 23

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 115
Width (in): 51.8
Height (in): 83.5
Operating Weight (lb): 2538

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 5.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag front: 6.70-15, Ag rear: 11.2-24, Lawn/turf front: 25x8.50-14, Lawn/turf rear: 13.6-16
Manufacture - End Year: -
Hitch Type: Rear Type: I (Assumed)
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (12 volts)
Brake Type: -
Hydraulic System Type: Open center
