Cub Cadet 7234

Last Updated: June 2024

Overview

The Cub Cadet 7234 is a Compact Utility Tractor designed for a range of tasks. It is powered by a 23 hp Mitsubishi K3G diesel engine with 3-cylinders, and liquid-cooled overhead valve (OHV) technology. The tractor has a partially-synchronized transmission with 9 forward and 3 reverse gears. It also features a 4 wheel drive system, making it ideal for a variety of terrain. Other specifications include an engine displacement of 75.4 cubic inches, and a rated engine RPM of 2500. The tractor has hydrostatic power steering for precision control and the comfort of the driver. The hydraulic system type is open center.

Key Specifications

Category: Utility

Power Output: 23

Transmission: Partially-Synchronized Gear

Drive Type: 4WD

Operating Weight: 2510

Fuel Type: Diesel

Image Gallery

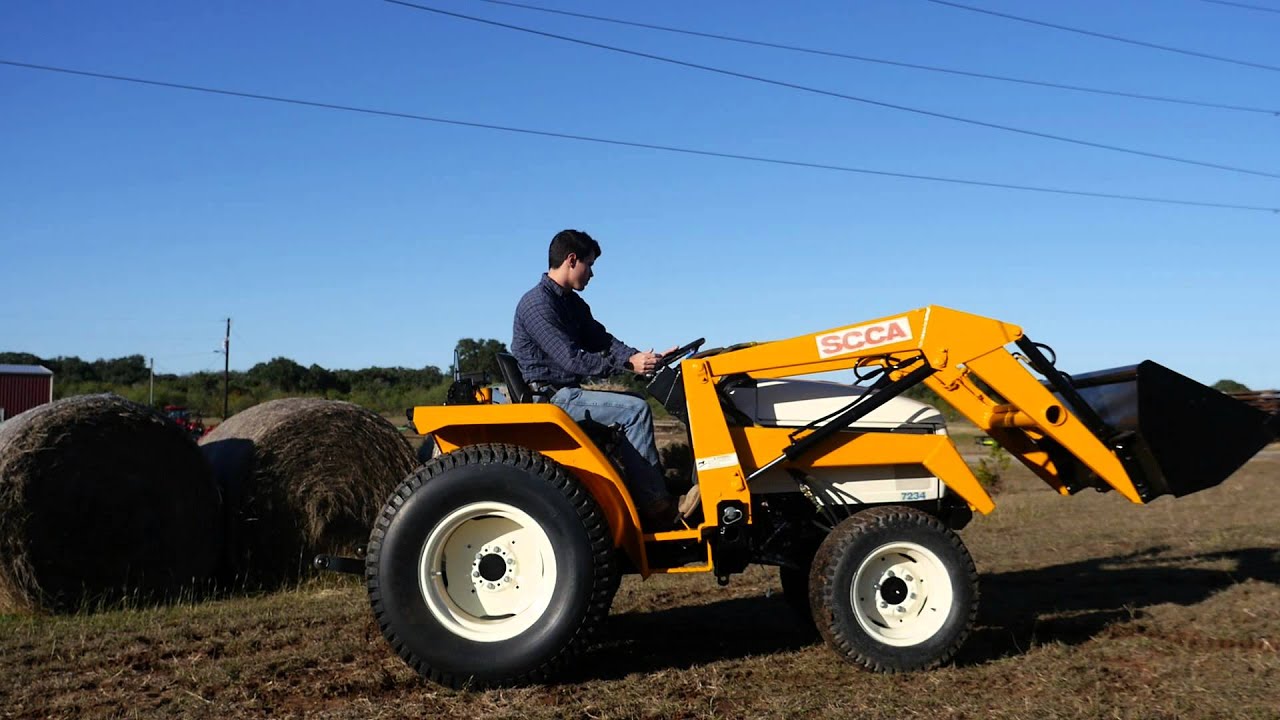

Cub Cadet 7234 Tractor

Cub Cadet 7234 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Operating Weight

Below Average

Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3G
Cooling Type: Liquid-cooled Overhead Valve (OHV)
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct Injection
Cylinders: 3
Displacement (ci): 75.4
Bore (in): 3.228
Stroke (in): 3.071
Rated RPM: 2500
Power Output (hp): 23

Transmission

Type: Partially-Synchronized Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 115
Width (in): 51.8
Height (in): 83.5
Operating Weight (lb): 2510

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 5.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural: Front: 6.70-15, Rear: 11.2-24; Lawn/Turf: Front: 25x8.50-14, Rear: 13.6-16
Manufacture - End Year: -
Hitch Type: Single Hitch Point
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open Center
