Cub Cadet 7233

Last Updated: June 2024

Overview

The Cub Cadet 7233 is a compact utility tractor designed for small-scale farming and large property maintenance. The tractor, powered by a 23 horsepower Mitsubishi K3G diesel engine, features a 4x2 2WD chassis and hydrostatic transmission, providing a smooth and efficient operation in various conditions. The engine has a liquid-cooled overhead valve configuration, ensuring a long operational life and excellent fuel efficiency. The 7233 model features an open center hydraulic system and has a weight of 2419 lbs with a maximum drawbar capacity of 837 lbs. Multiple tire types, including Agriculture and Lawn/Turf, make it versatile for different terrains. However, some specific data, such as PTO type, operator station type, and brake type, were not available.
Show more...

Key Specifications

Category: Utility

Power Output: 23

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 2419

Fuel Type: Diesel

Image Gallery

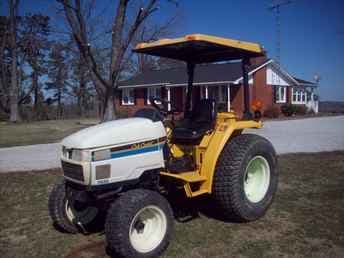

Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor Cub Cadet 7233 Tractor

Cub Cadet 7233 vs. Similar Tractors

Power Output
Below Average
Greater than 14% of similar tractors.
Hitch Capacity
Below Average
Greater than 18% of similar tractors.
Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3G
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
Overhead Valve (OHV)
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
3
Displacement (ci)
75.4
Bore (in)
3.228
Stroke (in)
3.071
Rated RPM
2500
Power Output (hp)
23

Transmission

Type
Hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
115
Width (in)
51.8
Height (in)
83.5
Operating Weight (lb)
2419

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
5.6
Front Tire Diameter (in)
15
Front Tire Width (in)
5
Rear Tire Diameter (in)
24
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture (Ag)
Manufacture - End Year
-
Hitch Type
Rear Type: I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
Max Drawbar: 837 lbs
Operator Station Type
-
Starter Type
12 Volts
Brake Type
-
Hydraulic System Type
Open center
