Cub Cadet 7205

Last Updated: June 2024

Overview

The Cub Cadet 7205 model is a compact tractor with a Mitsubishi diesel engine. It has a power output of 20 hp and a total displacement of 68.6 cubic inches. The engine employs a liquid cooling system and features 3 inline cylinders. This model operates with a hydrostatic transmission and has infinite forward and reverse gears in a 2-range style. With an oil capacity of 19 quarts, it ensures long operation periods. The open-center hydraulic system contributes to its efficient operation. The tractor measures 106.5 inches in length, 46.3 inches in width, and 78.9 inches in height, with an operating weight of 1992 lbs.

Key Specifications

Power Output: 20

Transmission: hydrostatic

Operating Weight: 1992

Fuel Type: diesel

Lift Capacity: 837 lbs (Max Drawbar)

Image Gallery

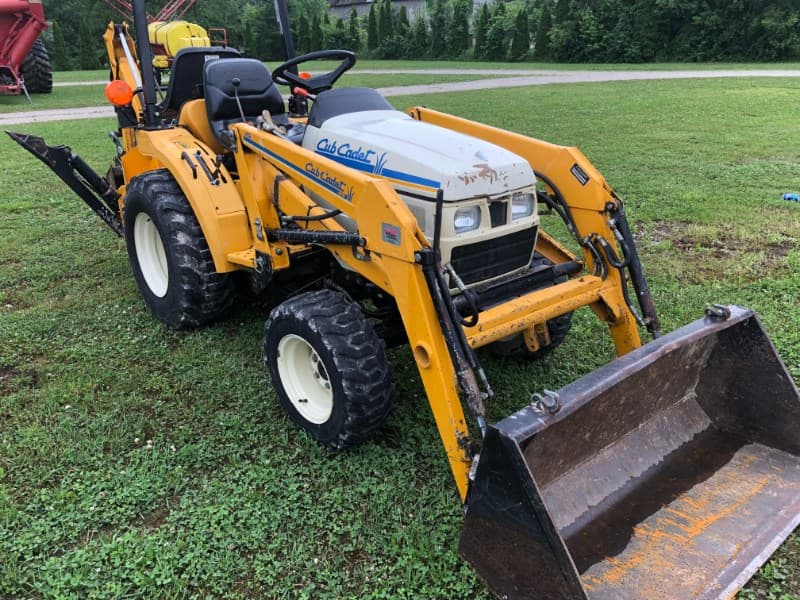

Cub Cadet 7205 Tractor

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: inline
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 68.6
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2500
Power Output (hp): 20

Transmission

Type: hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 106.5
Width (in): 46.3
Height (in): 78.9
Operating Weight (lb): 1992

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: power steering
Coolant Capacity (qts): 6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf, Industrial
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 837 lbs (Max Drawbar)
Operator Station Type: ROPS
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: open center
