Cub Cadet 7200

Last Updated: June 2024

Overview

The Cub Cadet 7200 is a reliable and sturdy compact utility tractor, manufactured by Cub Cadet from 2002 through 2003. This tractor is powered by a liquid-cooled diesel engine developed by Mitsubishi, featuring three cylinders, a displacement of 68.6 cubic inches, and a rated RPM of 2500. Power is transferred to the wheels through a partially synchronized transmission system that offers six forward and two reverse gears. With a hydraulic power steering system and disc brakes, the tractor provides a commanding and safe operation. This model is equipped with open operator station, and its body is measured at 106.5 inches in length, 46.3 inches in width, and 78.9 inches in height, and having a weight of 1964 pounds which confer stability during operations.

Key Specifications

Category: Utility

Power Output: 20

Transmission: Partially Synchronized

Drive Type: 4WD

Operating Weight: 1964

Fuel Type: Diesel

Image Gallery

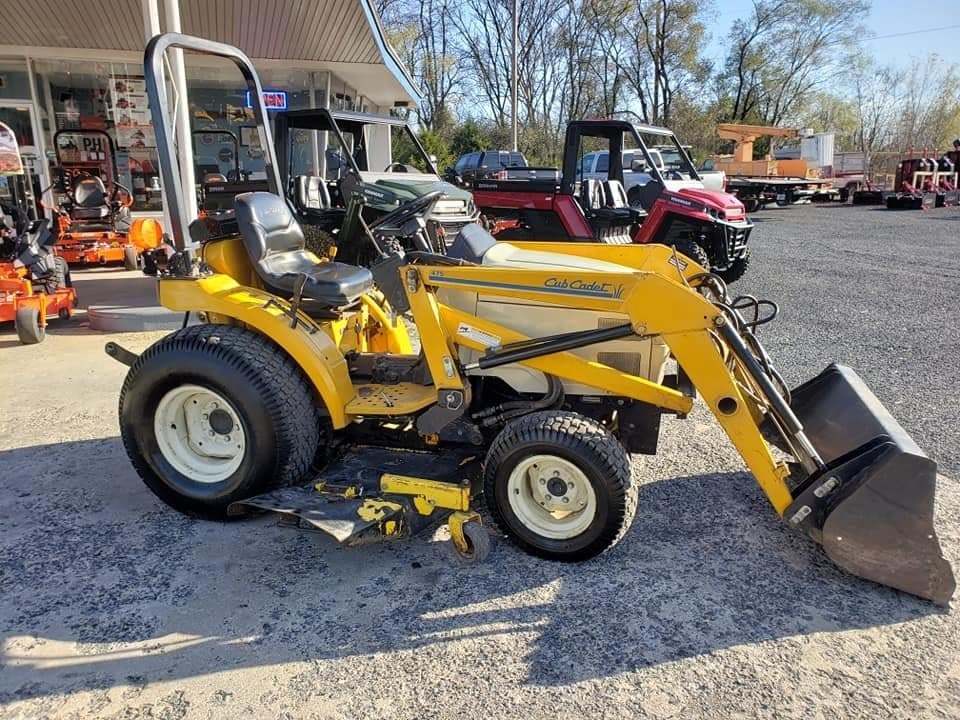

Cub Cadet 7200 Tractor

Cub Cadet 7200 vs. Similar Tractors

Power Output

Poor

Greater than 10% of similar tractors.

Operating Weight

Below Average

Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: Vertical Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 68.6
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2500
Power Output (hp): 20

Transmission

Type: Partially Synchronized
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 106.5
Width (in): 46.3
Height (in): 78.9
Operating Weight (lb): 1964

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 4WD
Drive Type: 4WD
Steering Type: Hydraulic Power Steering
Coolant Capacity (qts): 6
Front Tire Diameter (in): 12
Front Tire Width (in): 6
Rear Tire Diameter (in): 16
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2003
Hitch Type: Three Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Disc
Hydraulic System Type: Open Center
