Cub Cadet 7194

Last Updated: June 2024

Overview

The Cub Cadet 7194 tractor is a durable and powerful tractor designed for versatile performance and convenience. This model is powered by a K3E engine from Mitsubishi, renowned for delivering reliable performance and fuel efficiency. The tractor features a partially synchronized gear transmission system, facilitating smooth gear shifts and driving ease. Its hydrostatic power steering reduces effort and enhances control and maneuverability. For added efficiency and durability, the engine boasts a liquid-cooled overhead valve (OHV) configuration. The robust tractor offers a substantial operating weight of 1964 lbs and dimensions of 106.5" in length, 46.3" in width, and 78.9" in height. Despite its detailed specs, some data such as Category, Chassis, and Drive type were unavailable.

Key Specifications

Power Output: 19

Transmission: Partially synchronized gear

Operating Weight: 1964

Fuel Type: Diesel

Image Gallery

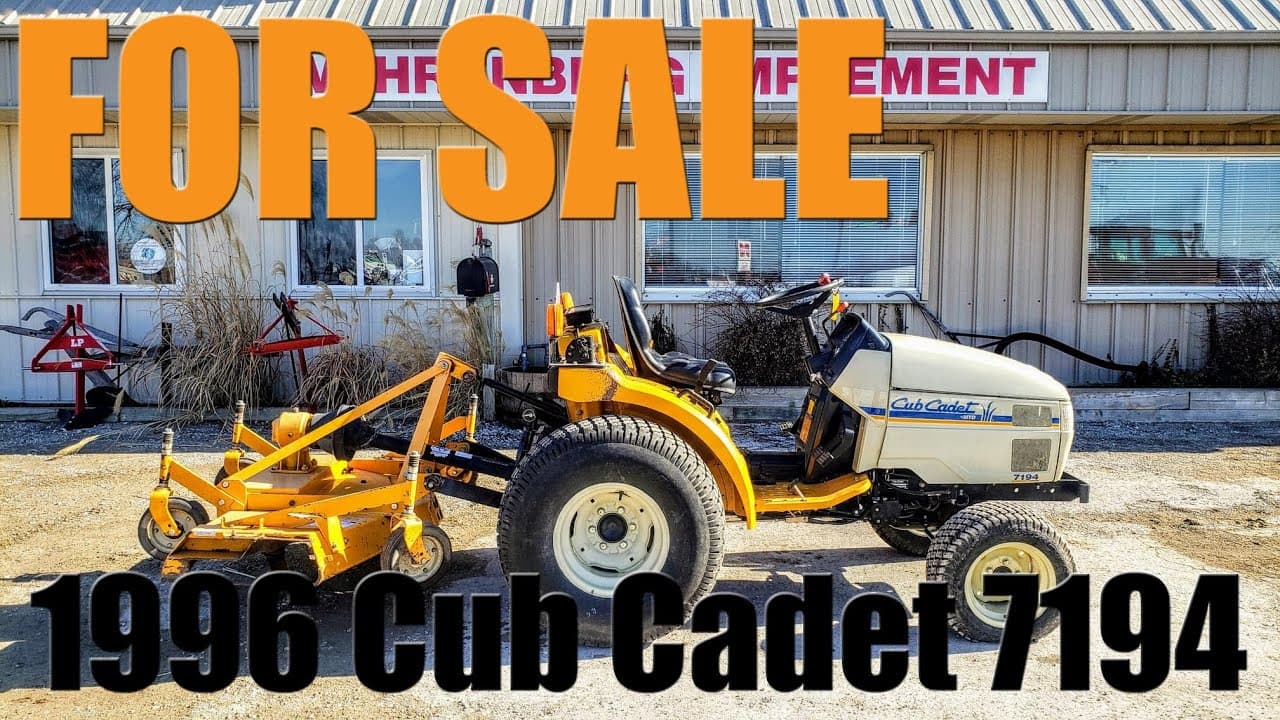

Cub Cadet 7194 Tractor

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3E
Cooling Type: Liquid-cooled overhead valve (OHV)
Cylinder Orientation: -
Valve Configuration: Overhead valve (OHV)
Fuel Type: Diesel
Induction Type: Indirect injection
Cylinders: 3
Displacement (ci): 64.7
Bore (in): 2.99
Stroke (in): 3.07
Rated RPM: 2500
Power Output (hp): 19

Transmission

Type: Partially synchronized gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 106.5
Width (in): 46.3
Height (in): 78.9
Operating Weight (lb): 1964

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural / Lawn-turf
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 Volts
Brake Type: -
Hydraulic System Type: Open center
