Cub Cadet 70

Last Updated: June 2024

Overview

The Cub Cadet 70 is a 2WD garden tractor manufactured by Cub Cadet, a part of International Harvester, in Louisville, Kentucky, USA from 1963 to 1965. It is equipped with a Kohler K161, 0.3 L single-cylinder gasoline engine and shaft-driven gear transmission with 3 forward and 1 reverse gear, or alternatively a creeper transmission with 6 forward and 2 reverse gears. The tractor features manual steering, dry disc brakes, an open operator station, and a fuel tank capacity of 4.7 liters.

Key Specifications

Category: Lawn and Garden

Power Output: 7

Transmission: Shaft-driven gear; Creeper

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

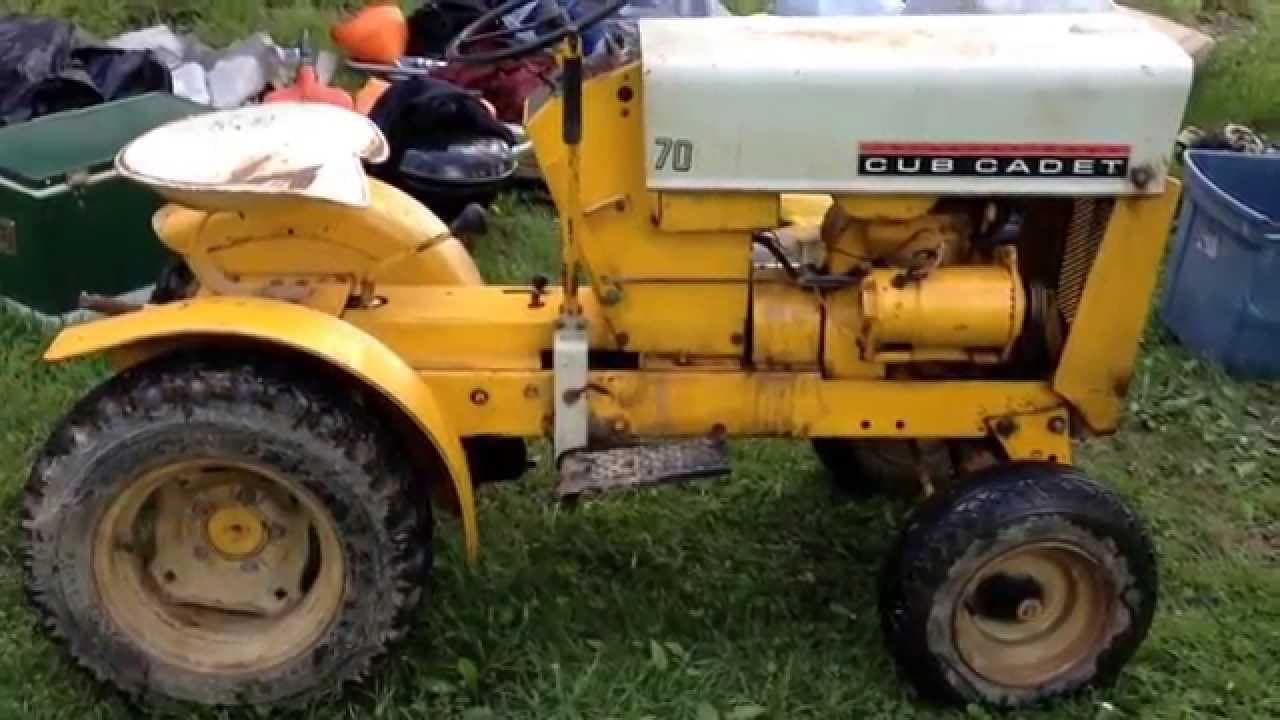

Cub Cadet 70 Tractor

Cub Cadet 70 vs. Similar Tractors

Power Output

Poor

Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K161
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 16.25
Bore (in): 2.87
Stroke (in): 2.52
Rated RPM: 3600
Power Output (hp): 7

Transmission

Type: Shaft-driven gear; Creeper
Forward Gears: 3; 6
Reverse Gears: 1; 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): 39.8
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1965
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric (K161S) or Retractable (K161T)
Brake Type: Dry disc
Hydraulic System Type: -
