Cub Cadet 6284D

Last Updated: June 2024

Overview

The Cub Cadet 6284D is a robust tractor equipped with a 28 horsepower, 3-cylinder diesel engine manufactured by Caterpillar. The tractor uses a hydrostatic transmission which provides an infinite number of forward and reverse gears. It features four-wheel drive (4WD) along with 4x4 MFWD chassis which offer high functionality and and efficient operation. The tractor measures a length of 91 inches, a width of 50 inches, and a height of 82 inches. It weighs approximately 1953 lbs.

Key Specifications

Power Output: 28

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1953

Fuel Type: Diesel

Image Gallery

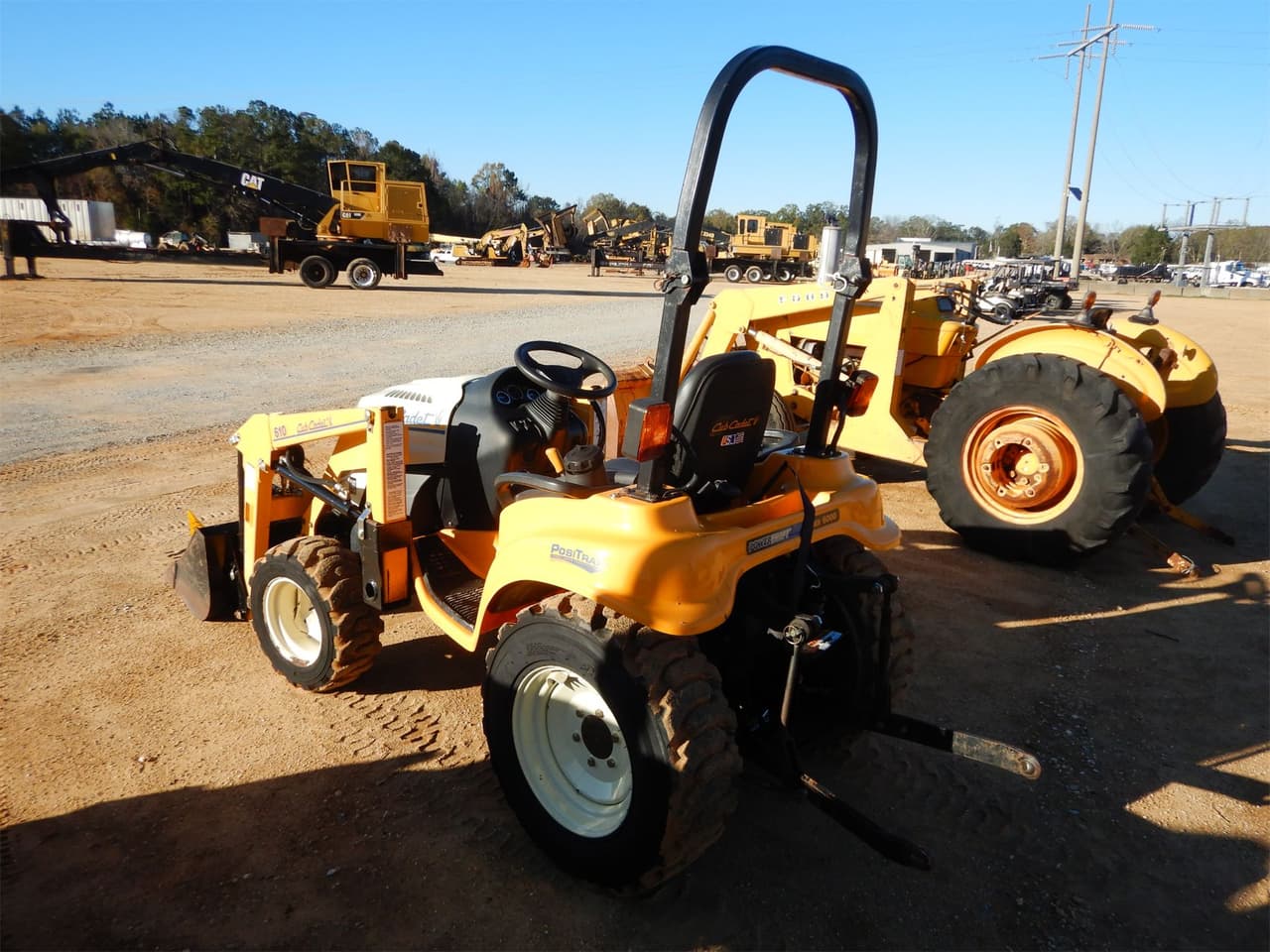

Cub Cadet 6284D Tractor

Technical Specifications

Engine

Manufacturer: Caterpillar
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 69.01
Bore (in): -
Stroke (in): -
Rated RPM: 3400
Power Output (hp): 28

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 91
Width (in): 50
Height (in): 82
Operating Weight (lb): 1953

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf, Industrial
Manufacture - End Year: -
Hitch Type: Rear Type: I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric, 12 volts
Brake Type: -
Hydraulic System Type: -
