Cub Cadet 3206

Last Updated: June 2024

Overview

The Cub Cadet 3206 is a well-constructed Garden Tractor manufactured by Cub Cadet, a part of MTD, from 2001 to 2002. It carries convenient attributes such as power steering and an open operator station, making it suitable for various horticultural tasks. The tractor possesses a reliable Kohler Command CH22S, two-cylinder gasoline engine. This engine comes with a natural aspiration and a V-twin cylinder orientation, factors that largely contribute to the excellent performance of this tractor model. Moreover, it operates on a 4x2 2WD chassis, ensuring better maneuverability during operations.

Key Specifications

Category: Lawn and Garden

Power Output: 22

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 805

Fuel Type: Gasoline

Image Gallery

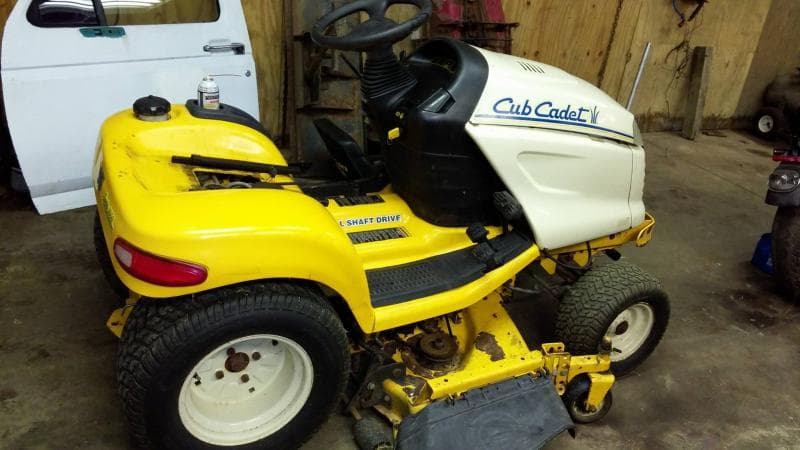

Cub Cadet 3206 Tractor

Cub Cadet 3206 vs. Similar Tractors

Power Output

Above Average

Greater than 76% of similar tractors.

Operating Weight

Above Average

Greater than 77% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command CH22S
Cooling Type: Air-cooled
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 39.8
Bore (in): 3.15
Stroke (in): 2.56
Rated RPM: 3600
Power Output (hp): 22

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 73.6
Width (in): 41.7
Height (in): 43.3
Operating Weight (lb): 805

Power Take-Off (PTO)

PTO Type: Independent with E-Vac clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 7.5
Rear Tire Diameter (in): 24
Rear Tire Width (in): 10.5
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2002
Hitch Type: -
Hitch Category: 0 (optional)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: External Disk
Hydraulic System Type: -
