Cub Cadet 2518

Last Updated: June 2024

Overview

The Cub Cadet 2518 is a 2WD garden and lawn tractor from the 2500 series. The Cub Cadet 2518 is equipped with a 0.6 L two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears. It offers a comfortable open operator station and comes with an optional sleeve hitch.

Key Specifications

Category: Lawn and Garden

Power Output: 20

Transmission: Shaft-driven hydrostatic

Drive Type: Two-wheel drive (2WD)

Operating Weight: 712

Fuel Type: Gasoline

Image Gallery

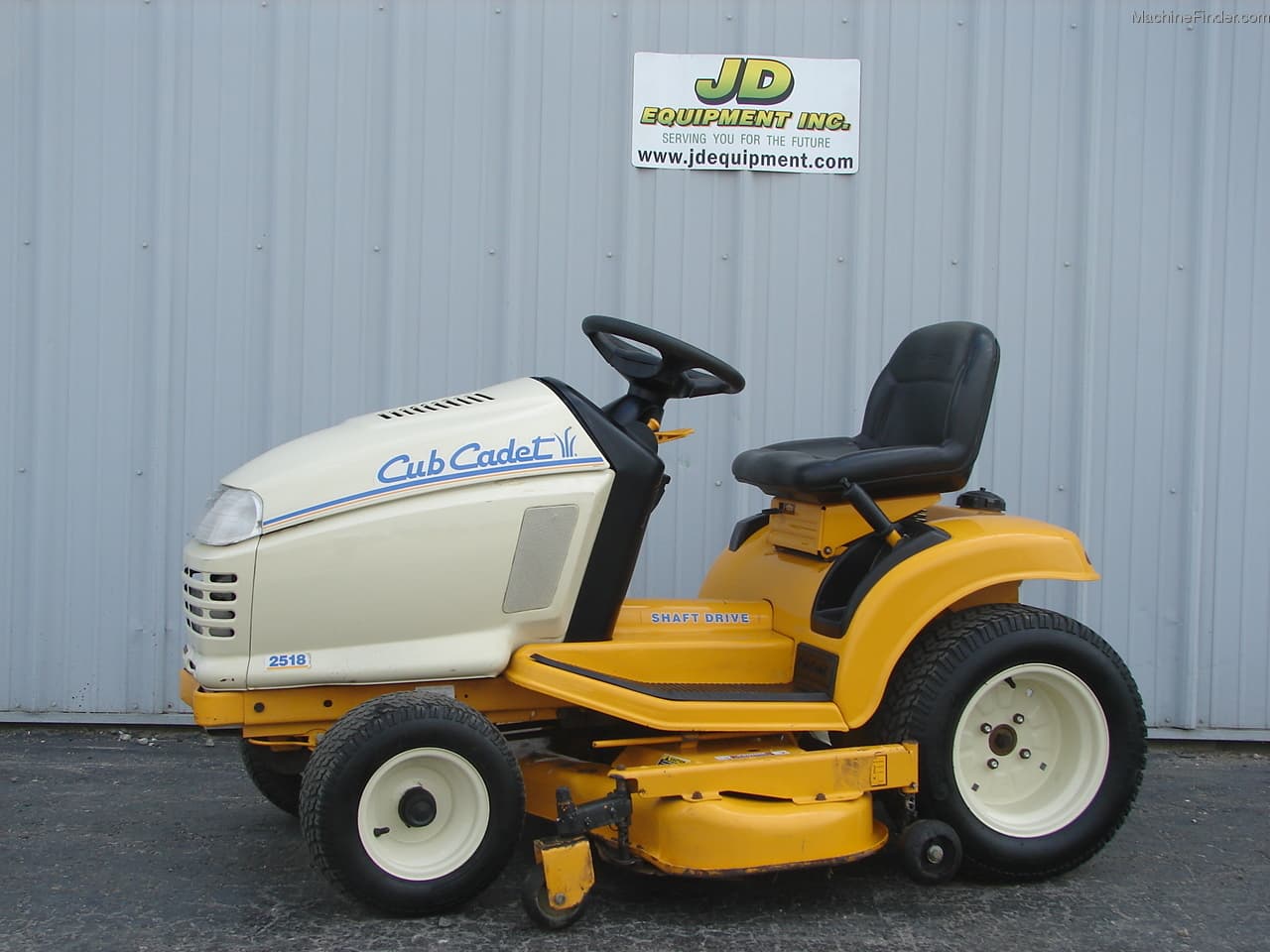

Cub Cadet 2518 Tractor

Cub Cadet 2518 vs. Similar Tractors

Power Output

Average

Greater than 69% of similar tractors.

Operating Weight

Average

Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command
Cooling Type: Air-cooled
Cylinder Orientation: Vertical (V)
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 2
Displacement (ci): 38.1
Bore (in): 3.03
Stroke (in): 2.64
Rated RPM: 3600
Power Output (hp): 20

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 48.8
Height (in): 42.9
Operating Weight (lb): 712

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: Two-wheel drive (2WD)
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2003
Hitch Type: Sleeve hitch (optional)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Internal expanding
Hydraulic System Type: Not Specified
