Cub Cadet 2284

Last Updated: June 2024

Overview

The Cub Cadet 2284 is a 2WD lawn and garden tractor that was manufactured by Cub Cadet, a division of MTD, from 1995 to 1997. The tractor is equipped with a 0.6L two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears. The 2284 model comes with power steering and an open operator station. It has a fuel tank capacity of 18.9 liters.

Key Specifications

Category: Lawn and Garden

Power Output: 22

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Operating Weight: 1036

Fuel Type: Gasoline

Image Gallery

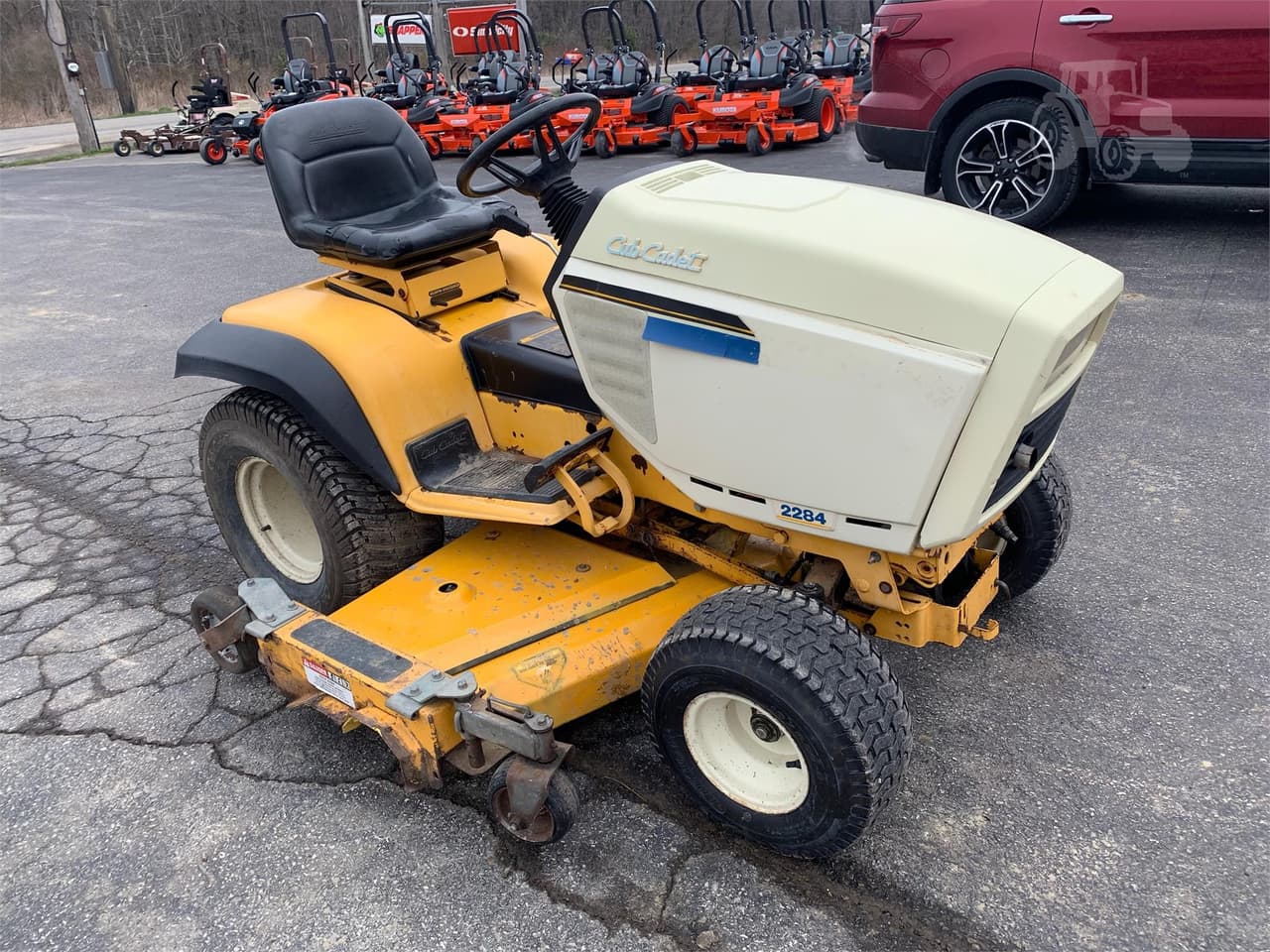

Cub Cadet 2284 Tractor

Cub Cadet 2284 vs. Similar Tractors

Power Output

Above Average

Greater than 76% of similar tractors.

Operating Weight

Above Average

Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command CH22
Cooling Type: Air-cooled
Cylinder Orientation: V (vertical)
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 2
Displacement (ci): 38.1
Bore (in): 3.03
Stroke (in): 2.64
Rated RPM: -
Power Output (hp): 22

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 78.3
Width (in): 43.3
Height (in): 47.5 (steering wheel)
Operating Weight (lb): 1036

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 18
Front Tire Width (in): 8.5
Rear Tire Diameter (in): 26
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1997
Hitch Type: -
Hitch Category: 0 (optional)
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
