Cub Cadet 2166

Last Updated: June 2024

Overview

The Cub Cadet 2166 is a 2WD lawn tractor from the 2000 series. It was manufactured by the Cub Cadet (a part of MTD) from 2000 to 2003. The 2166 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears. This tractor uses a Kohler Command PRO engine with a cylinder bore of 3.54 in and a piston stroke of 2.64 in. The engine has a power output of 16.0 HP and operates at a rated speed of 3600 RPM. This model has manual steering and internal expanding brakes. It comes with an open operator station for easy operation.

Key Specifications

Category: Lawn and Garden

Power Output: 16

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Operating Weight: 738

Fuel Type: Gasoline

Image Gallery

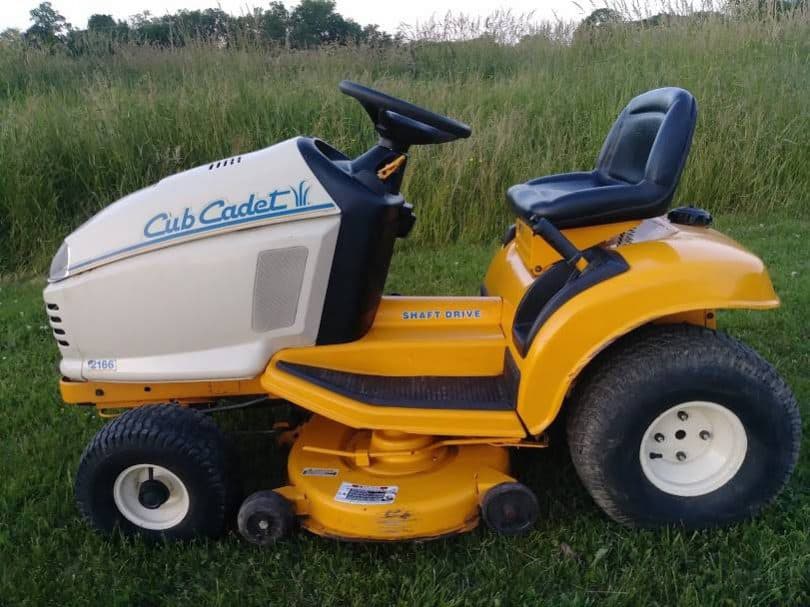

Cub Cadet 2166 Tractor

Cub Cadet 2166 vs. Similar Tractors

Power Output

Average

Greater than 40% of similar tractors.

Operating Weight

Above Average

Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command PRO
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 26
Bore (in): 3.54
Stroke (in): 2.64
Rated RPM: 3600
Power Output (hp): 16

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 51
Height (in): 41.7
Operating Weight (lb): 738

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2003
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Internal expanding
Hydraulic System Type: -
