Cub Cadet 2146

Last Updated: June 2024

Overview

The Cub Cadet 2146 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2000 to 2001. The Cub Cadet 2146 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears. The tractor uses the Linamar ZX390 engine. It is a 0.4 L, single-cylinder natural aspirated gasoline engine with a cylinder bore of 3.31 in and piston stroke of 2.76 in. This engine produced a maximum output power of 14.0 HP at 3,600 rpm. The Cub Cadet 2146 is equipped with manual steering, internal expanding brakes, open operator station, and a mid-mount 38 in mower deck with 2-blades and manual lift. It has 8.5 liters fuel tank capacity.

Key Specifications

Category: Lawn and Garden

Power Output: 13.9

Transmission: Shaft-driven Hydrostatic

Drive Type: 2WD

Operating Weight: 683

Fuel Type: Gasoline

Image Gallery

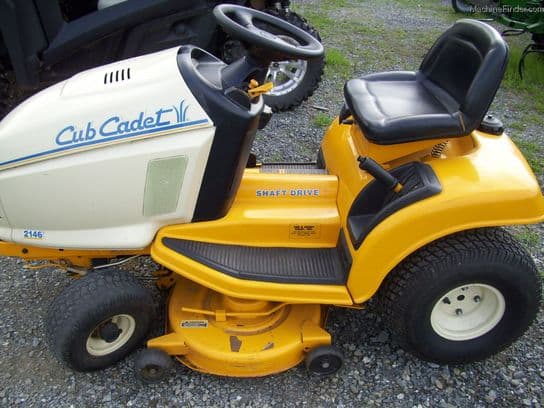

Cub Cadet 2146 Tractor

Cub Cadet 2146 vs. Similar Tractors

Power Output

Below Average

Greater than 28% of similar tractors.

Operating Weight

Average

Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer: Linamar
Model: ZX390
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 23.7
Bore (in): 3.31
Stroke (in): 2.76
Rated RPM: 3600
Power Output (hp): 13.9

Transmission

Type: Shaft-driven Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 45.1
Height (in): 42
Operating Weight (lb): 683

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6.5
Rear Tire Diameter (in): 20
Rear Tire Width (in): 9
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 2001
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Internal expanding
Hydraulic System Type: -
