Cub Cadet 1861

Last Updated: June 2024

Overview

The Cub Cadet 1861 is a 2WD lawn and garden tractor manufactured by Cub Cadet (a part of MTD) from 1991 to 1992. The Cub Cadet 1861 is equipped with a 0.7 L (42.2 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears. It has a Kohler Magnum M18 engine, a disc brake system and an open operator station.

Key Specifications

Category: Lawn and Garden

Power Output: 18

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Operating Weight: 836

Fuel Type: Gasoline

Image Gallery

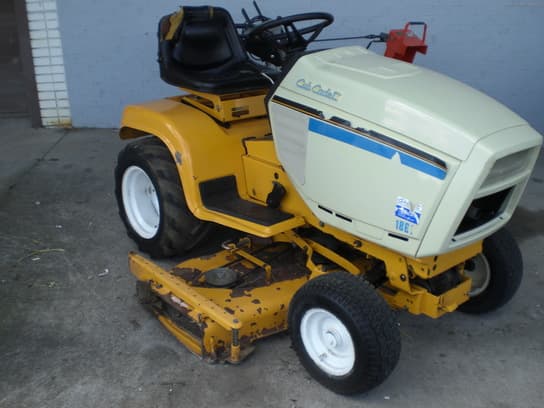

Cub Cadet 1861 Tractor

Cub Cadet 1861 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Operating Weight

Above Average

Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Magnum M18
Cooling Type: Air-cooled
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 2
Displacement (ci): 42.2
Bore (in): 3.11
Stroke (in): 2.76
Rated RPM: -
Power Output (hp): 18

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 37.4
Height (in): 43.7
Operating Weight (lb): 836

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1992
Hitch Type: -
Hitch Category: Category 0
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Disc
Hydraulic System Type: -
