Cub Cadet 1811

Last Updated: June 2024

Overview

The Cub Cadet 1811 is a 2WD lawn and garden tractor that was manufactured in Brownsville, Tennessee, USA from 1986 to 1989. The tractor uses a Kohler M18 engine, which is a naturally aspirated, two-cylinder gasoline engine. The 0.7L engine produces a power output of 18 HP. The 1811 features a shaft-driven hydrostatic transmission with infinite forward and reverse gears. It also has manual steering and dry disc brakes. This tractor comes with an open operator station and a 4 US gallon fuel tank. The Cub Cadet 1811 is equipped with a PTO that is an independent type with electric clutch.

Key Specifications

Category: Lawn and Garden

Power Output: 18

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

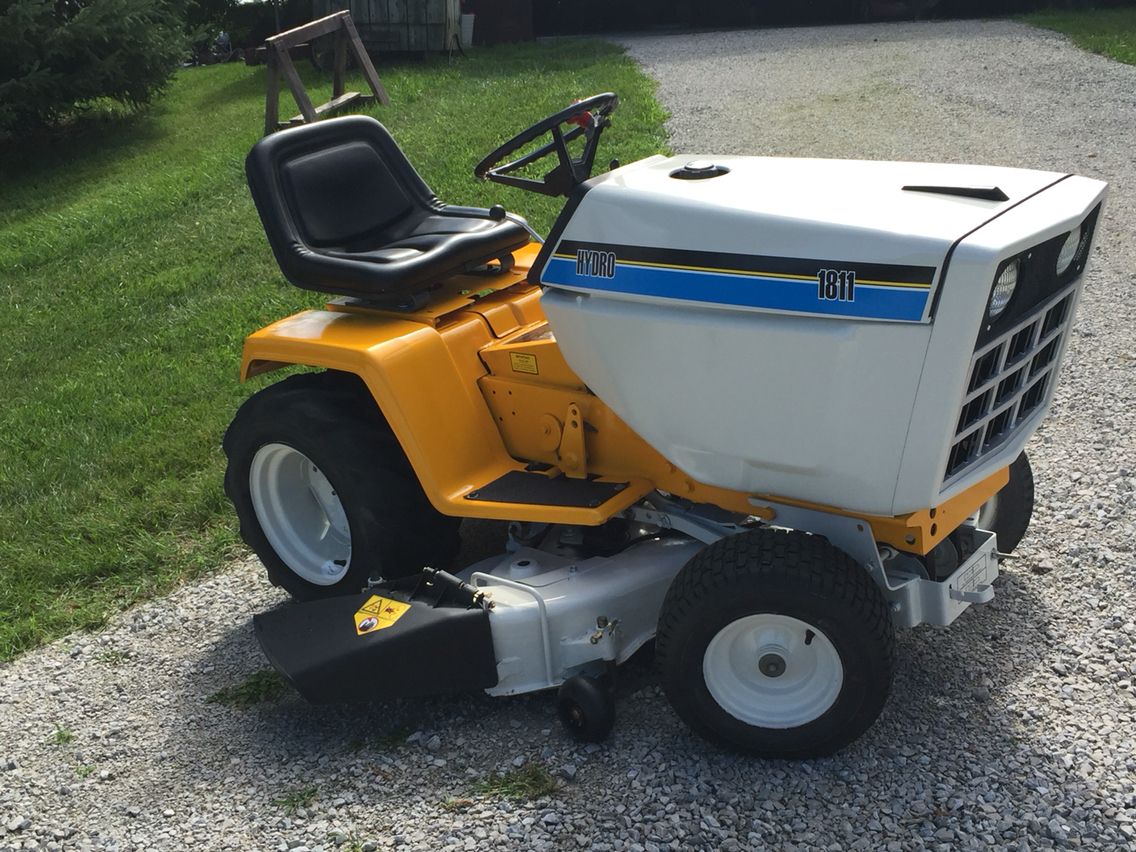

Cub Cadet 1811 Tractor

Cub Cadet 1811 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: M18
Cooling Type: Air-cooled
Cylinder Orientation: V (most likely vertical given the context)
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 42.2
Bore (in): 3.11
Stroke (in): 2.76
Rated RPM: -
Power Output (hp): 18

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 37.4
Height (in): 42.9
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 6.5
Rear Tire Diameter (in): 23
Rear Tire Width (in): 10.5
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1989
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Dry disc
Hydraulic System Type: -
