Cub Cadet 1810

Last Updated: June 2024

Overview

The Cub Cadet 1810 is a 2WD garden tractor that was manufactured by Cub Cadet, a part of MTD, in Brownsville, Tennessee, USA, from 1986 to 1989. It is equipped with a 0.7 L (42.2 cu·in) two-cylinder natural aspirated gasoline engine produced by Kohler. The engine delivers a maximum output power of 18.0 HP. It uses a shaft-driven hydrostatic transmission and manual steering, making it an efficient choice for maintaining landscaped areas.

Key Specifications

Category: Lawn and Garden

Power Output: 18

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

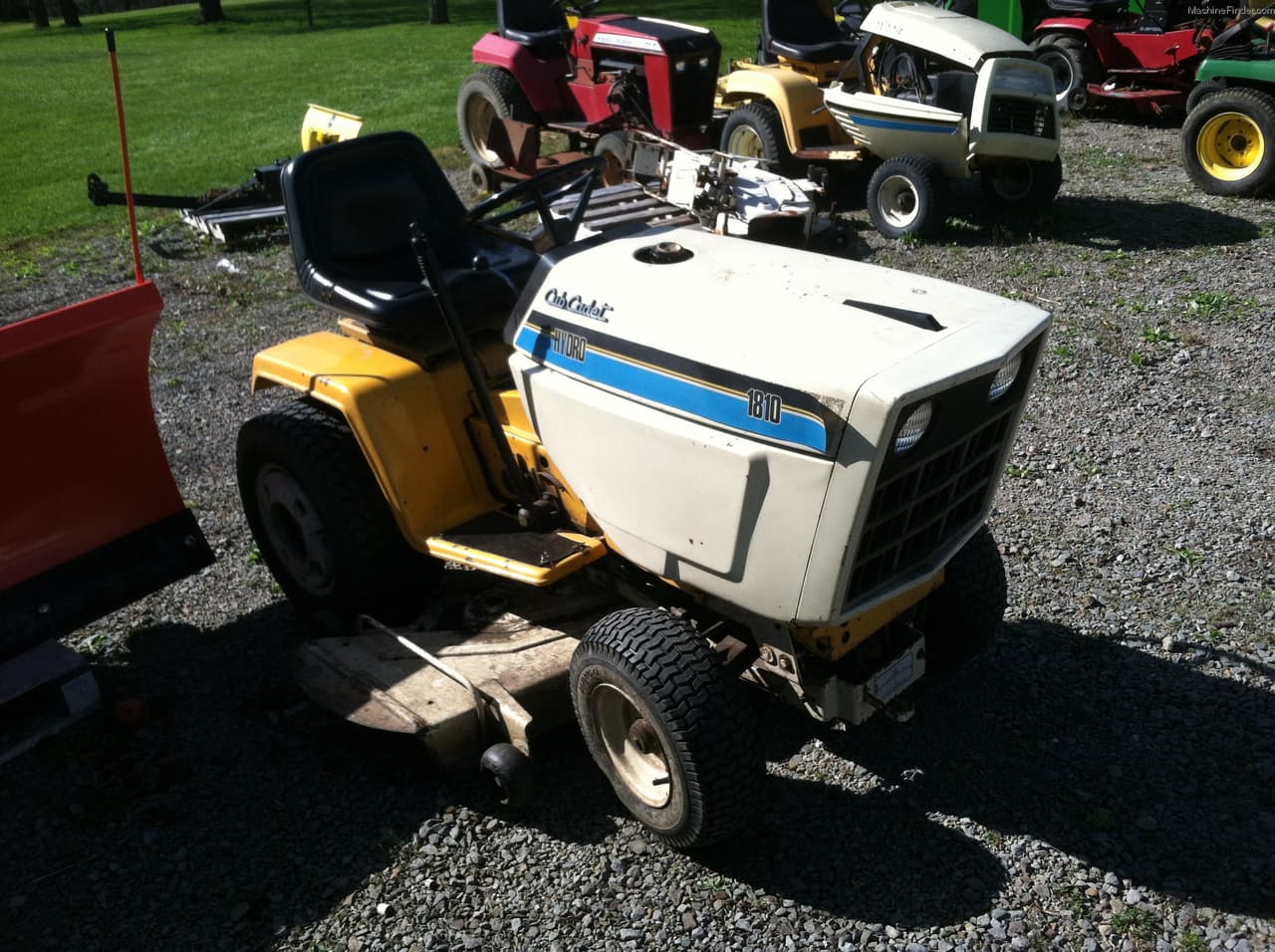

Cub Cadet 1810 Tractor

Cub Cadet 1810 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: M18
Cooling Type: Air-Cooled
Cylinder Orientation: V (Assumed Vertical)
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 42.2
Bore (in): 3.11
Stroke (in): 2.76
Rated RPM: -
Power Output (hp): 18

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite forward and reverse
Reverse Gears: Infinite forward and reverse
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 37.4
Height (in): 42.9
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 1989
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: Dry disc
Hydraulic System Type: -
