Cub Cadet 1517

Last Updated: June 2024

Overview

The Cub Cadet 1517 is a 2WD garden tractor from the 1500 series. This tractor was manufactured by Cub Cadet (a part of MTD) during 2002. The Cub Cadet 1517 is equipped with a 0.5 L (29.9 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears. The tractor used the Kohler CV490 engine, a single-cylinder natural aspirated gasoline engine. It is equipped with manual steering, dry disc brakes, open operator station and a 11.4 liters fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 17

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 500

Fuel Type: Gasoline

Image Gallery

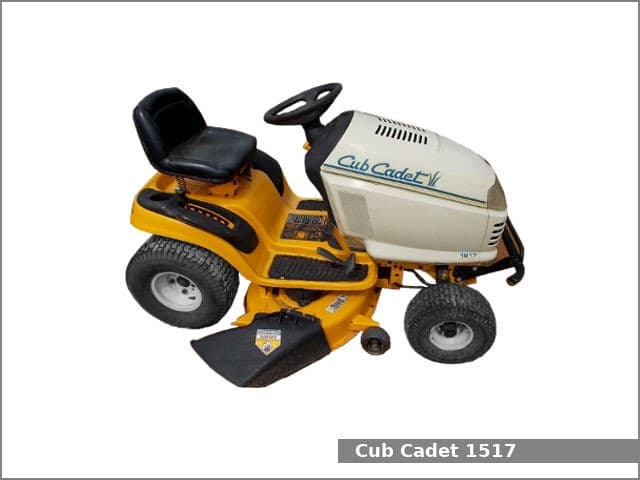

Cub Cadet 1517 Tractor

Cub Cadet 1517 vs. Similar Tractors

Power Output

Average

Greater than 45% of similar tractors.

Operating Weight

Below Average

Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: CV490
Cooling Type: Air-Cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 1
Displacement (ci): 29.9
Bore (in): 3.54
Stroke (in): 3.03
Rated RPM: 3600
Power Output (hp): 17

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68
Width (in): 44.9
Height (in): 42.9
Operating Weight (lb): 500

Power Take-Off (PTO)

PTO Type: Independent with Electric Clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 20
Rear Tire Width (in): 9
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: Dry Disc
Hydraulic System Type: -
