Cub Cadet 1315

Last Updated: June 2024

Overview

The Cub Cadet 1315 is a 2WD lawn tractor that was manufactured by Cub Cadet, a part of MTD, from 1989 to 1991. This model is equipped with a 0.4 L single-cylinder gasoline engine and a gear type transmission with 5 forward and 1 reverse gear. Its features include manual steering, dry disc brakes, an open operator station, and a fuel tank capacity of 11.4 liters. The engine model is Kohler Command CV12.5, an air-cooled engine that produced a power output of 12.5 hp at 3,600 RPM.

Key Specifications

Category: Lawn and Garden

Power Output: 12.5

Transmission: Gear

Drive Type: 2WD

Operating Weight: 985

Fuel Type: Gasoline

Image Gallery

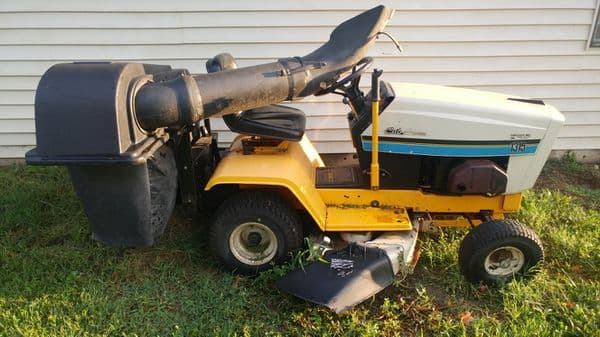

Cub Cadet 1315 Tractor

Cub Cadet 1315 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Above Average

Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command CV12.5
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 24.3
Bore (in): 3.43
Stroke (in): 2.64
Rated RPM: 3300
Power Output (hp): 12.5

Transmission

Type: Gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 68.1
Width (in): -
Height (in): -
Operating Weight (lb): 985

Power Take-Off (PTO)

PTO Type: Independent with mechanical clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 18
Rear Tire Width (in): 8.5
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 1991
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: Dry Disc
Hydraulic System Type: -
