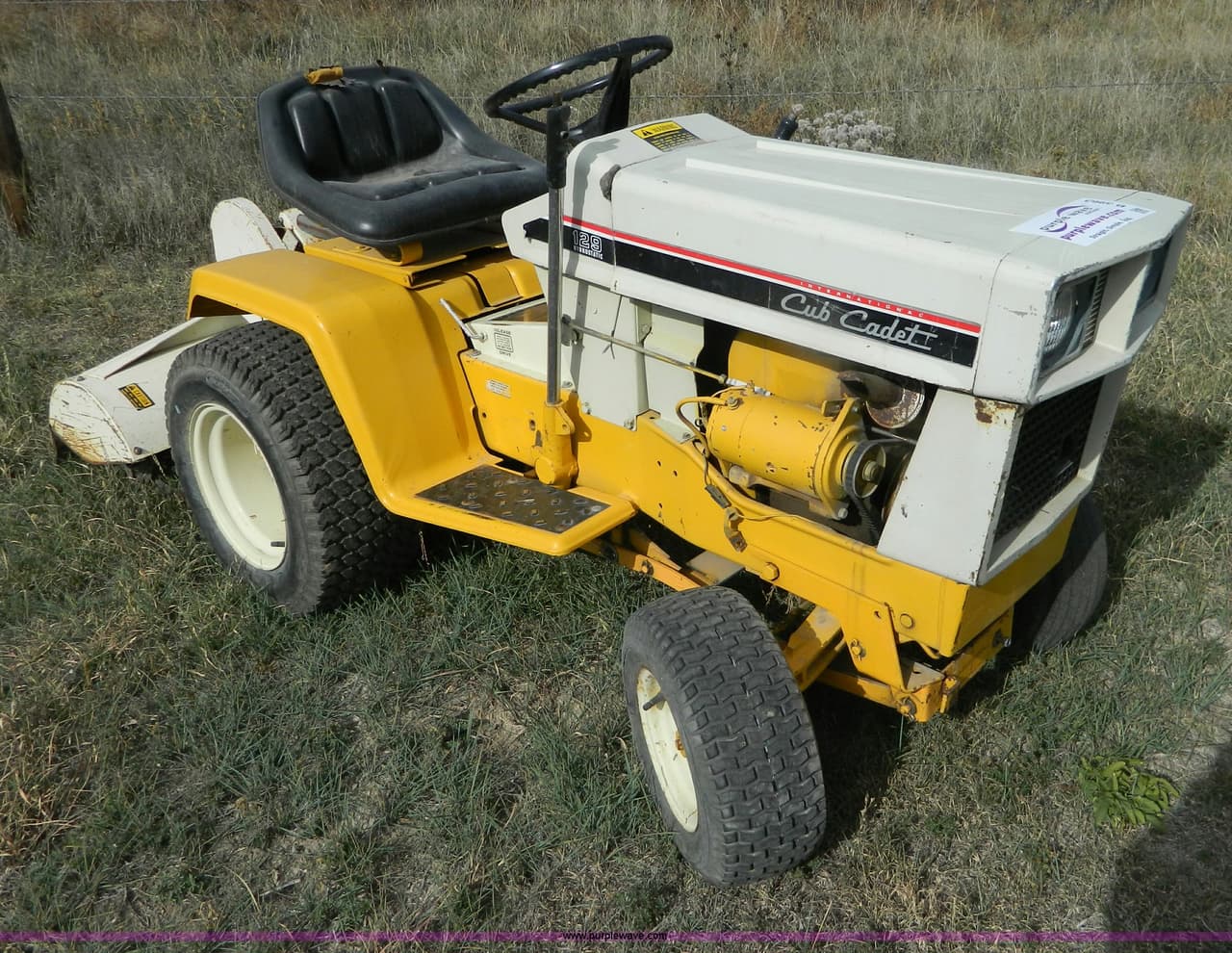

Cub Cadet 129

Last Updated: September 2024

Overview

The Cub Cadet 129 is a compact lawn and garden tractor made from 1971 to 1974. It's perfect for small yards and gardens. This tractor has a 2WD system with manual steering, making it easy to maneuver around trees and flower beds. It uses a hydrostatic transmission, which means you can change speed smoothly without shifting gears.

Under the hood, you'll find a Kohler K301A engine. This single-cylinder, air-cooled engine runs on gasoline and produces 12 hp. It has a below-average displacement of 29 ci but runs at a very high 3600 rpm. The tractor weighs 650 lb, which is about average for its class. It measures 68.9 inches long, 35.8 inches wide, and 40.9 inches tall. The Cub Cadet 129 comes with lawn/turf tires, an open operator station, and electric start for easy operation. It also has a sleeve hitch for attaching tools and an independent PTO with a mechanical clutch.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 12 hp (8.9 kW)

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 650 lb (295 kg)

Fuel Type: Gasoline

Cub Cadet 129 vs. Similar Tractors

Power Output

The Power Output for the Cub Cadet 129 is Below Average. It is greater than 19% of similar Lawn and Garden tractors in our database.

Horsepower distribution of Lawn and Garden tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Cub Cadet 129 is Average. It is greater than 58% of similar Lawn and Garden tractors in our database.

Operating weight distribution of Lawn and Garden tractors

(across 0.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Cub Cadet 129 is Below Average. It is greater than 28% of similar Lawn and Garden tractors in our database.

Engine displacement distribution of Lawn and Garden tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Cub Cadet 129 is Average. It is greater than 56% of similar Lawn and Garden tractors in our database.

Engine rated RPM distribution of Lawn and Garden tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kohler
Model
K301A
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
1
Displacement
29 ci (0.5 L)
Bore
3.37 in (85.6 mm)
Stroke
3.25 in (82.5 mm)
Rated RPM
3600
Power Output
12 hp (8.9 kW)

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Brake Type
Mechanical disc
