Cub Cadet 128

Last Updated: June 2024

Overview

The Cub Cadet 128 is a 2WD garden tractor from the 1X8/1X9 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1971 to 1974. The Cub Cadet 128 is equipped with a 0.5 L single-cylinder gasoline engine and gear type transmission with dry disc clutch and 3 forward and 1 reverse gear or creeper with 6 forward and 2 reverse gear. It features manual steering, mechanical disc brakes, open operator station and a 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 12

Transmission: Gear type with dry disc clutch / Creeper

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

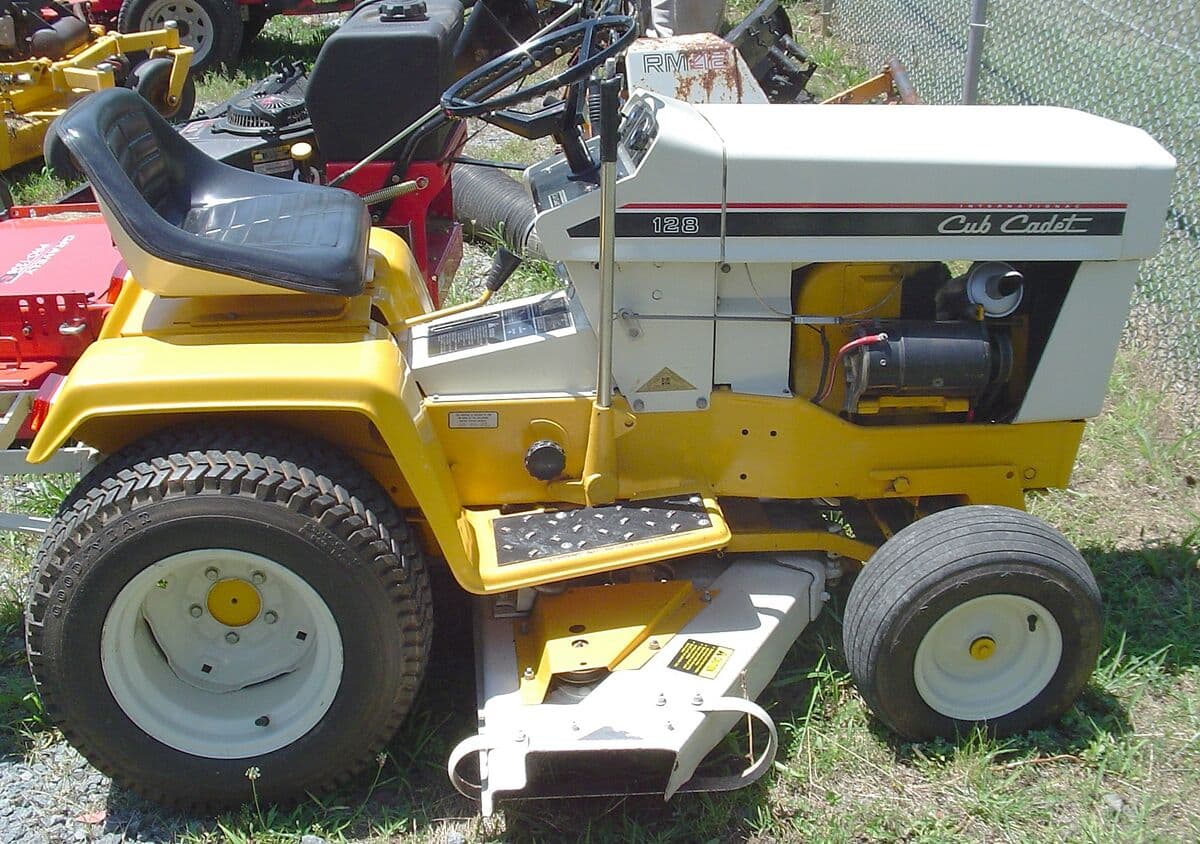

Cub Cadet 128 Tractor

Cub Cadet 128 vs. Similar Tractors

Power Output

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K301A
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 29
Bore (in): 3.37
Stroke (in): 3.25
Rated RPM: 3600
Power Output (hp): 12

Transmission

Type: Gear type with dry disc clutch / Creeper
Forward Gears: 6-Mar
Reverse Gears: 2-Jan
Total Gears: -

Dimensions

Length (in): 68.9
Width (in): 35.8
Height (in): 40.9
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): 515
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 1974
Hitch Type: Sleeve Hitch (optional)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: Mechanical Disc
Hydraulic System Type: -
