Cub Cadet 125

Last Updated: June 2024

Overview

The Cub Cadet 125 is a 2WD garden tractor from the 1X4/1X5 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1967 to 1969. The Cub Cadet 125 is equipped with a 0.5 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears. The Cub Cadet 125 garden tractor used the Kohler K301AS engine. It is a 0.5 L, 476 cm2, (29.0 cuÂ·in) single-cylinder natural aspirated gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of maximum output power. The Cub Cadet 125 is equipped with manual steering, drum brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 11.9

Transmission: Shaft-driven hydrostatic

Drive Type: 2WD

Operating Weight: 650.4

Fuel Type: Gasoline

Image Gallery

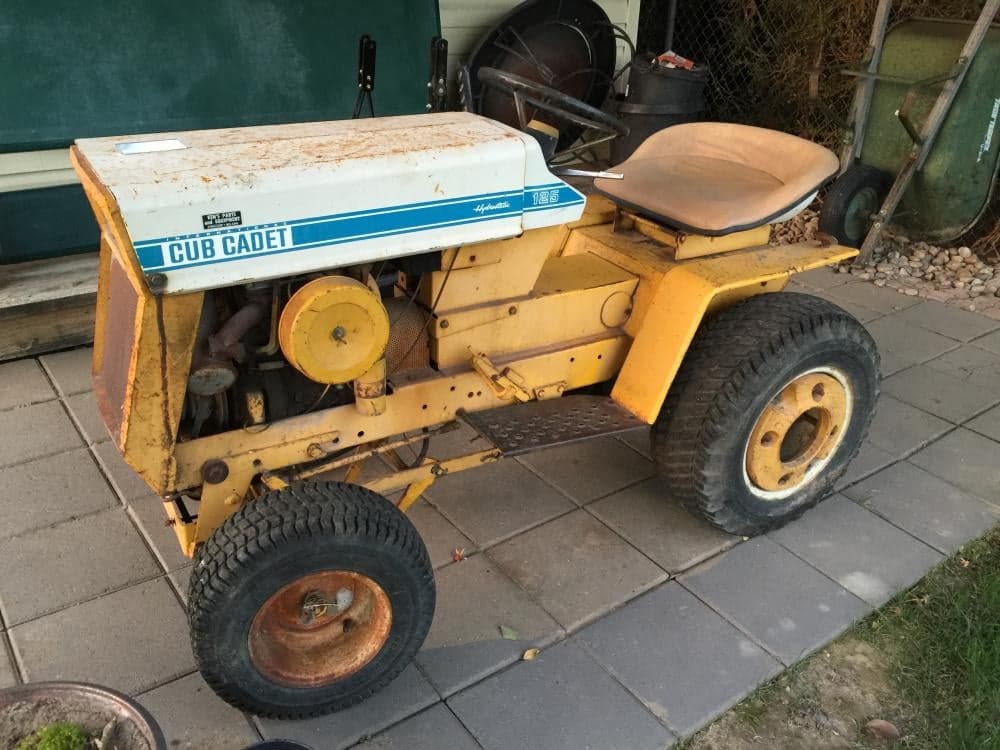

Cub Cadet 125 Tractor

Cub Cadet 125 vs. Similar Tractors

Power Output

Below Average

Greater than 15% of similar tractors.

Operating Weight

Average

Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K301AS
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural aspiration
Cylinders: 1
Displacement (ci): 29
Bore (in): 3.37
Stroke (in): 3.25
Rated RPM: 3600
Power Output (hp): 11.9

Transmission

Type: Shaft-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 63.8
Width (in): 35.8
Height (in): 39.4
Operating Weight (lb): 650.4

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 16.54
Front Tire Width (in): -
Rear Tire Diameter (in): 23
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1969
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
