Cub Cadet 105

Last Updated: June 2024

Overview

The Cub Cadet 105 is a 2WD lawn and garden tractor from the 1X4/1X5 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1967 to 1969. It is equipped with a 0.4 L (23.9 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears. The 105 is equipped with manual steering, drum brakes, open operator station and 6.2 liters (1.6 US gal.; 1.4 Imp. gal) fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 10.1

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 624

Fuel Type: Gasoline

Image Gallery

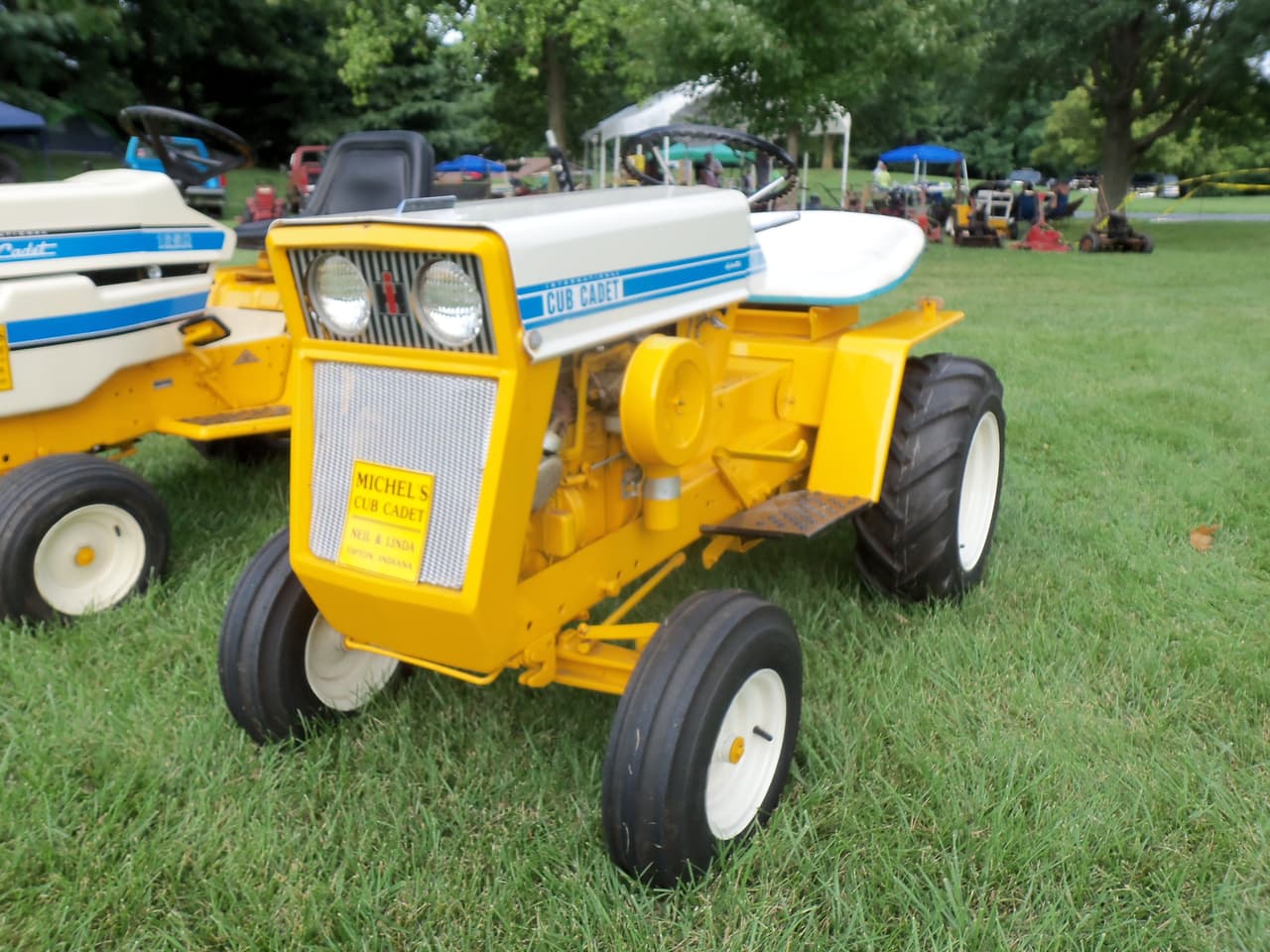

Cub Cadet 105 Tractor

Cub Cadet 105 vs. Similar Tractors

Power Output

Below Average

Greater than 12% of similar tractors.

Operating Weight

Average

Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: K241AS
Cooling Type: Air
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 1
Displacement (ci): 23.9
Bore (in): 3.27
Stroke (in): 2.87
Rated RPM: 3600
Power Output (hp): 10.1

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 63.8
Width (in): 33.1
Height (in): 39.4
Operating Weight (lb): 624

Power Take-Off (PTO)

PTO Type: Independent with mechanical clutch
PTO Speed 1 (rpm): 3600
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1969
Hitch Type: Three-point
Hitch Category: Cub Cadet three-point
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Drum
Hydraulic System Type: -
