County 762H

Last Updated: June 2024

Overview

The County 762H is a High-Clearance tractor, designed and manufactured by County. It is two-wheel drive (2WD) and has a 4x2 chassis. The tractor is equipped with a Ford Diesel 4-cylinder, liquid-cooled engine that offers an output of 75.5 horsepower. The tractor uses a gear transmission with 8 forward gears and 2 reverse gears. The 762H also features an electric starter system. The front and rear tread width can be adjusted, giving this tractor a flexible footprint for various applications. The standard tires of the tractor are ag type and the tractor also provides optional ag type tires for varied usage.

Key Specifications

Category: Utility, High-Clearance

Power Output: 75.5

Transmission: Gear

Drive Type: 2WD

Fuel Type: Diesel

Image Gallery

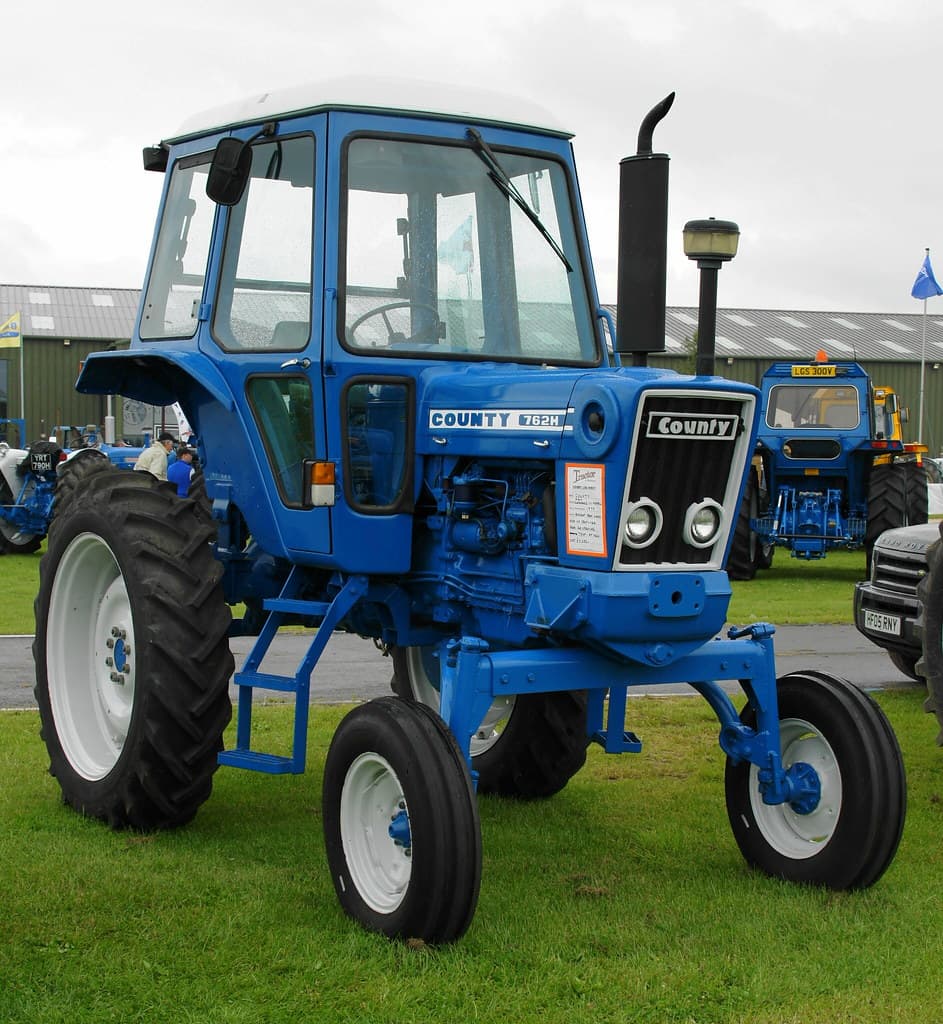

County 762H Tractor

County 762H vs. Similar Tractors

Power Output

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 256
Bore (in): 4.409
Stroke (in): 4.2126
Rated RPM: 2100
Power Output (hp): 75.5

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): Front tread: 58 to 78, Rear tread: 58 to 86
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 7.5
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard: Ag, Optional: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
