Cockshutt 60

Last Updated: June 2024

Overview

The Cockshutt Model 60 is a row-crop tractor that was manufactured by Cockshutt. It features a 2WD with a chassis configuration of 4x2. It incorporates a manual steering system and uses a 4-speed unsynchronized transmission system with 4 forward gears and one reverse gear. The Model 60 is powered by a four-cylinder, liquid-cooled, Oliver manufacturing engine that runs on gasoline, having a displacement of 120.6 cubic inches. An oil bath is used as an air cleaner in the engine. The engine's bore is 3.3125 inches and the stroke measures 3.5 inches. The operating weight of the tractor is 2500 lbs. Further details could not be determined based on the data provided.

Key Specifications

Category: Row Crop

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 2500

Fuel Type: Gasoline

Image Gallery

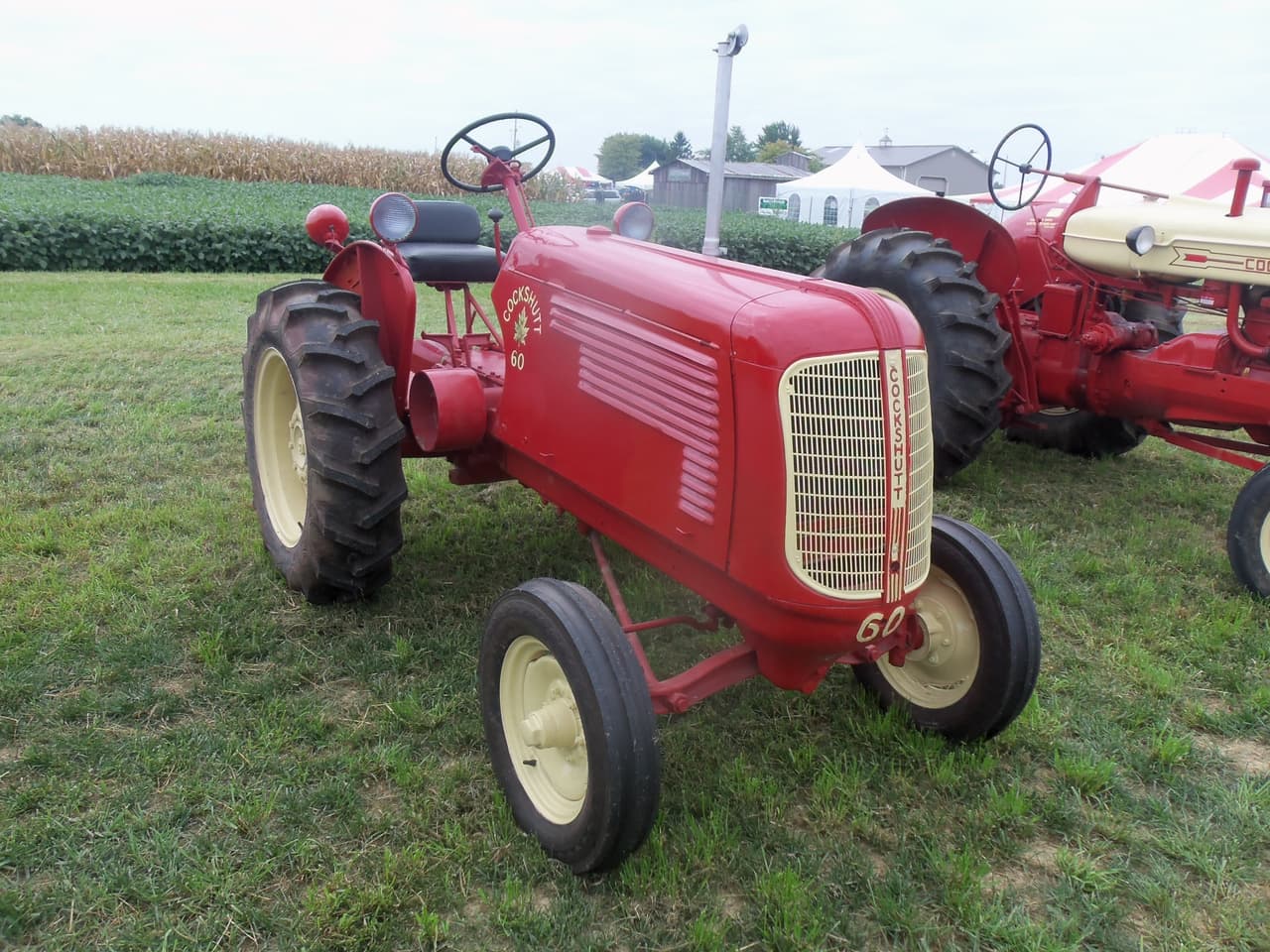

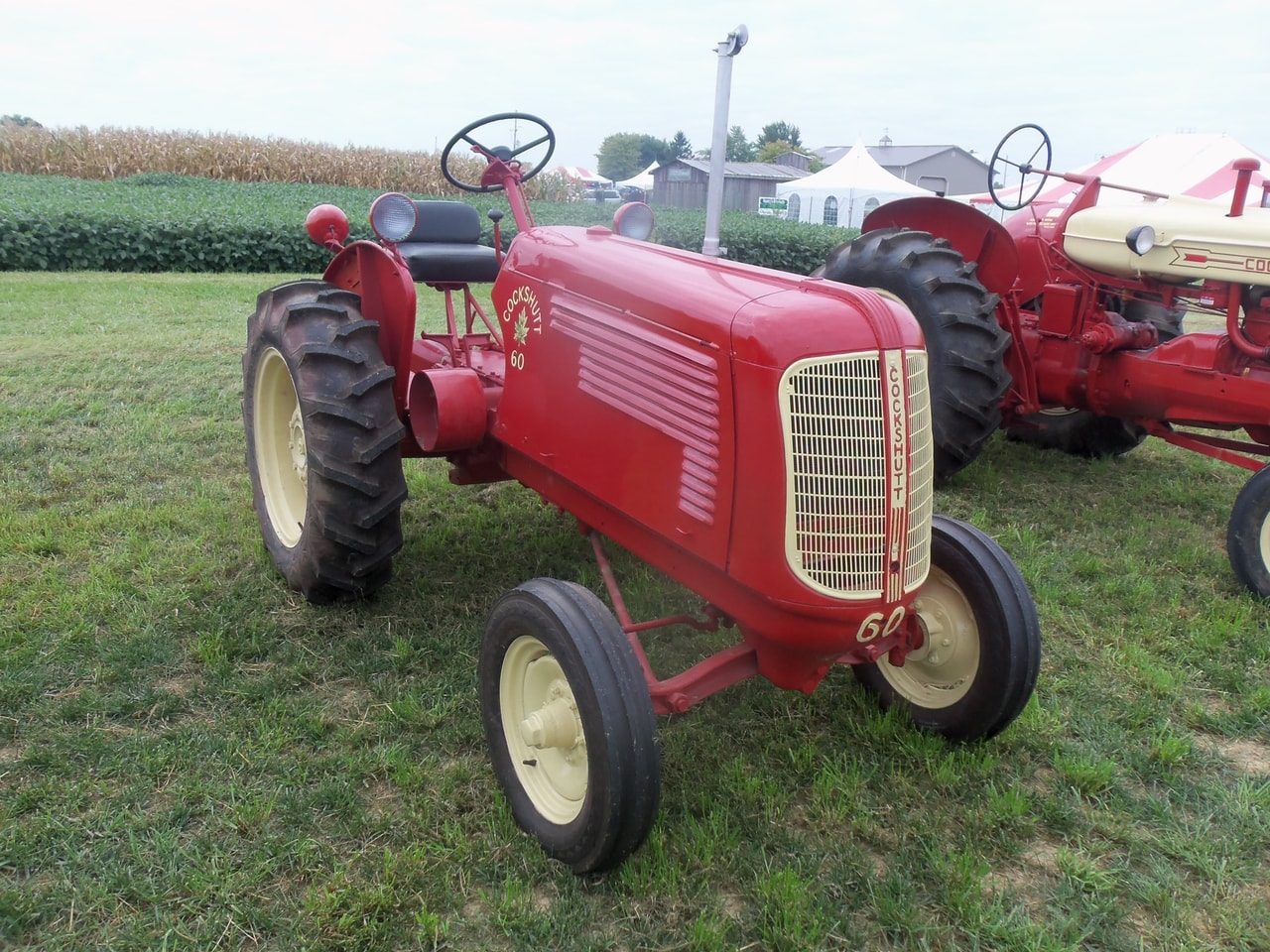

Cockshutt 60 Tractor

Cockshutt 60 vs. Similar Tractors

Operating Weight

Below Average

Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer: Oliver
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: -
Cylinders: 4
Displacement (ci): 120.6
Bore (in): 3.3125
Stroke (in): 3.5
Rated RPM: 1500
Power Output (hp): -

Transmission

Type: Unsynchronized gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 2500

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
