Cockshutt 560

Last Updated: June 2024

Overview

The Cockshutt 560 features a Perkins L4 diesel engine with liquid cooling and direct injection technology. This 4-cylinder engine has a displacement of 270 cubic inches and offers a rated RPM of 1650. The bore and stroke measurement stands at 4.25 inches and 4.75 inches respectively. The Cockshutt 560 utilizes an unsynchronized gear transmission system with 6 forward and 2 reverse gears. The tractor incorporates power assist type steering and an electric starter for smooth operation. It exhibits variations in its length - with a tricycle, row-crop and standard versions of 140 inches, 145 inches, and 136 inches respectively.
Show more...

Key Specifications

Transmission: Unsyncronized gear

Operating Weight: 7200

Fuel Type: Diesel

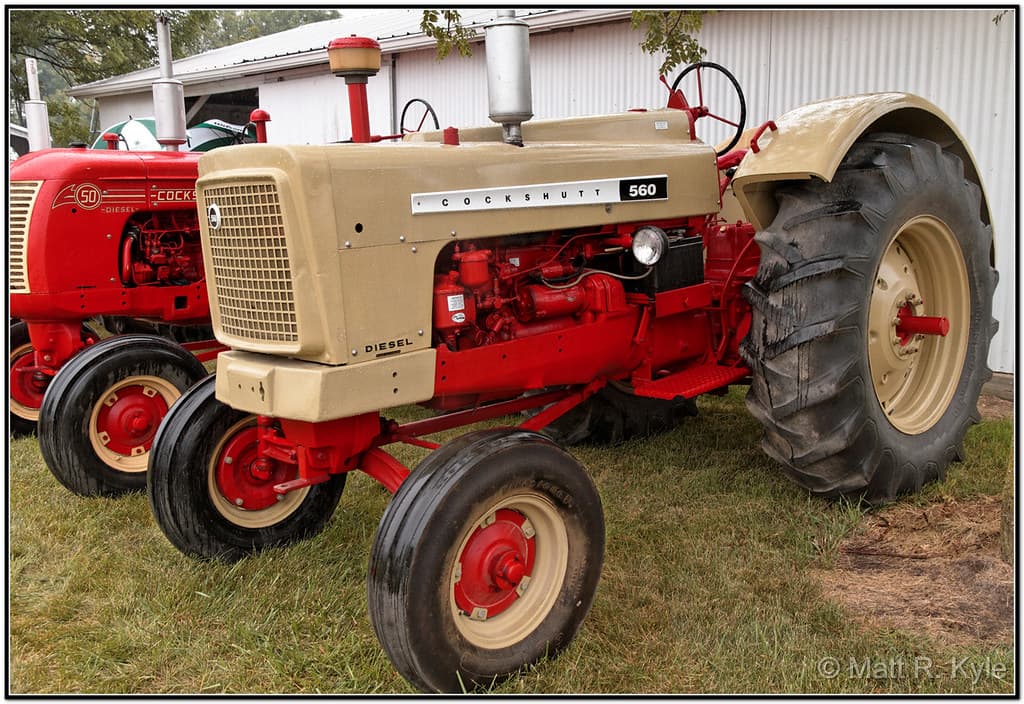

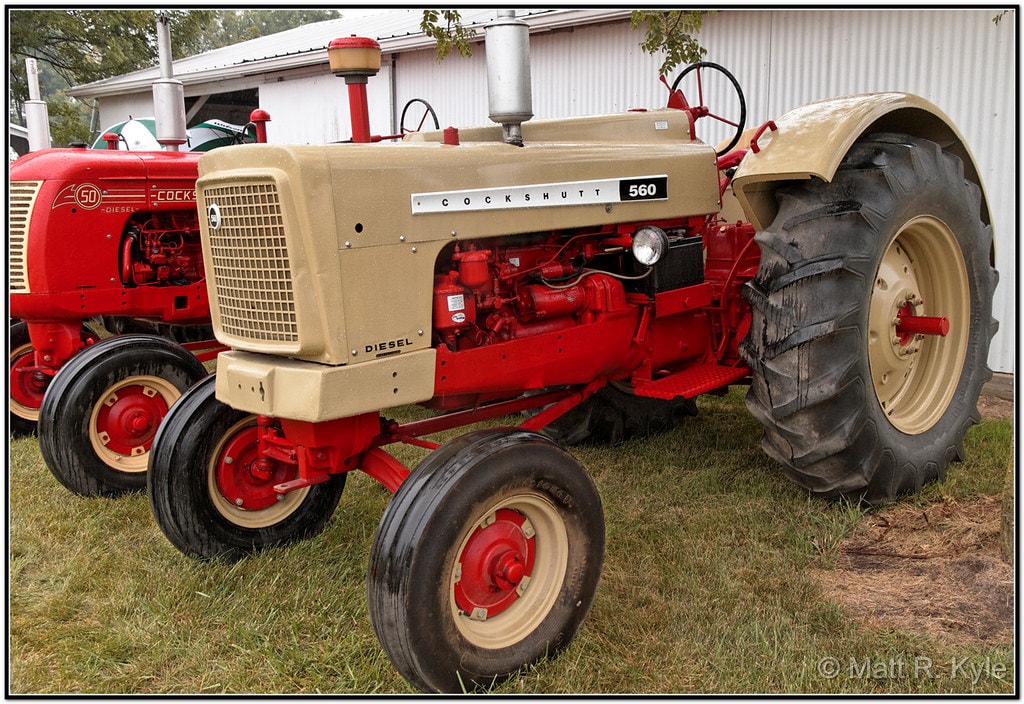

Image Gallery

Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor Cockshutt 560 Tractor

Technical Specifications

Engine

Manufacturer
Perkins
Model
L4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
4
Displacement (ci)
270
Bore (in)
4.25
Stroke (in)
4.75
Rated RPM
1650
Power Output (hp)
-

Transmission

Type
Unsyncronized gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
140 (Tricycle), 145 (Row-crop), 136 (Standard)
Width (in)
-
Height (in)
69
Operating Weight (lb)
7200

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Tricycle, Row-Crop, Standard based on wheelbase data
Drive Type
-
Steering Type
Power assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
