Cockshutt 550

Last Updated: June 2024

Overview

The Cockshutt 550 is a general purpose tractor, powered by an engine manufactured by either Hercules or Oliver. This versatile machinery has a chassis configuration of 4x2 and operates with 2-wheel drive. It features power assist steering for enhanced control and utilizes a gear transmission with 6 forward gears and 2 reverse gears. The engine, designed for both gasoline and diesel fuel, is equipped with 4 cylinders, a displacement range of 155 to 198 cubic inches, and it operates at a rated RPM of between 1650 and 2000. The tractor has an operating weight of 5600 pounds and a length of 119.9 inches. It operates smoothly using an open center hydraulic system. Descriptions of the wheelbase, hitch type, and additional features were not provided.

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD

Operating Weight: 5,600

Fuel Type: Gasoline/Diesel

Image Gallery

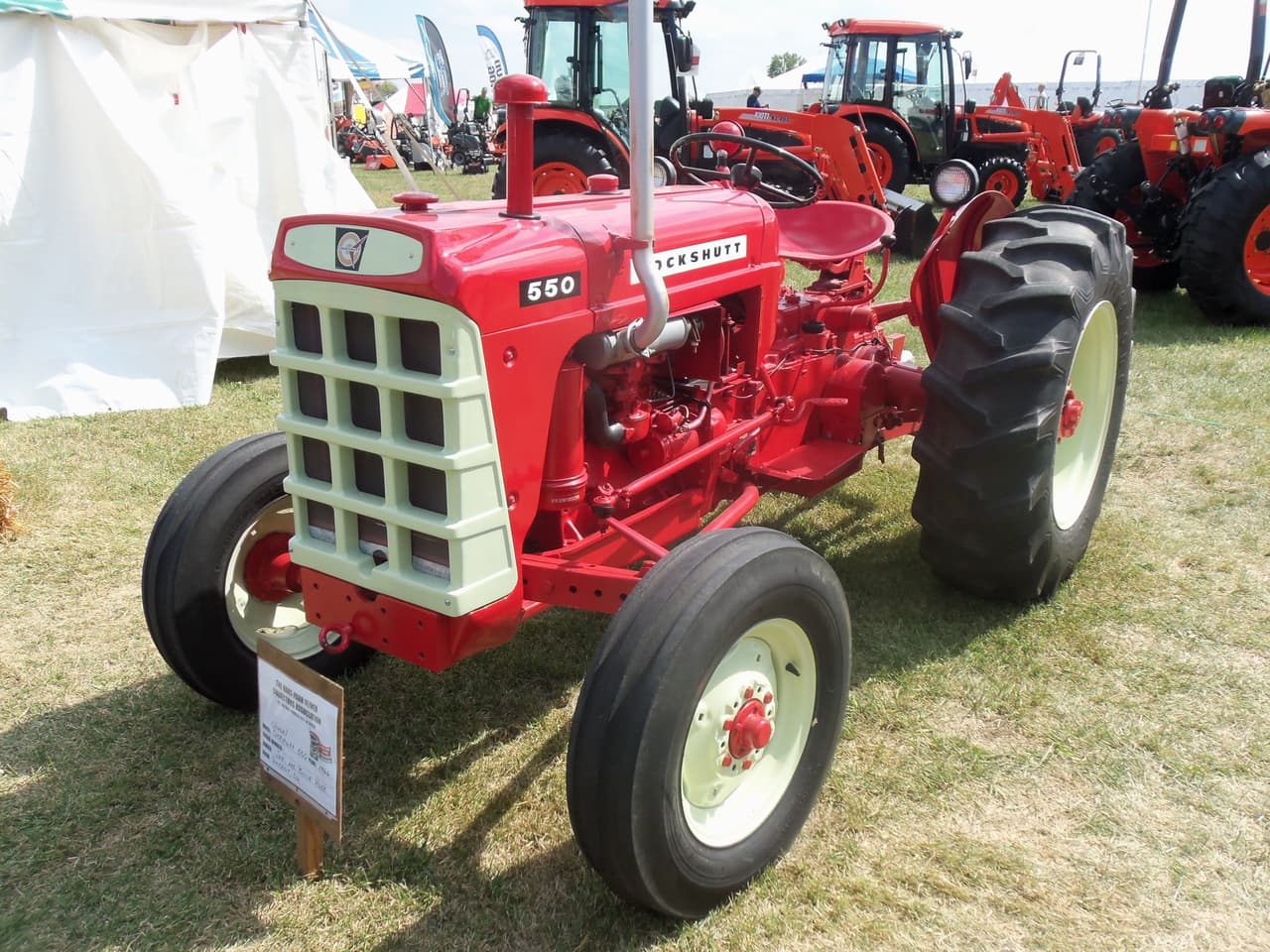

Cockshutt 550 Tractor

Cockshutt 550 vs. Similar Tractors

Operating Weight

Poor

Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer: Hercules/Oliver
Model: DD195/2.5L 4-cyl gasoline/2.5L 4-cyl diesel
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline/Diesel
Induction Type: Natural
Cylinders: 4
Displacement (ci): 155-198
Bore (in): 3.62-3.75
Stroke (in): 3.75-4.50
Rated RPM: 1650-2000
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 119.9
Width (in): 48 to 76
Height (in): 50.1-58
Operating Weight (lb): 5,600

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power assist
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
