Cockshutt 1950

Last Updated: June 2024

Overview

The Cockshutt 1950 tractor is a model in the row-crop category. It was manufactured by Cockshutt, a part of the White Company. The tractor features a 4x2 2WD chassis and is equipped with hydraulic power steering. The engine, a General Motors 4-53 model, is a diesel engine cooled by liquid. It features 4 cylinders and a blower, and operates at a rated RPM of 2400. The transmission is a 6-speed gear as well as a partial power shift system with 12 forward gears and 4 reverse gears. The operating weight of the tractor is 12,975 lbs.

Key Specifications

Category: Row Crop

Transmission: Gear & partial power shift

Drive Type: 2WD

Operating Weight: 12,975

Fuel Type: Diesel

Image Gallery

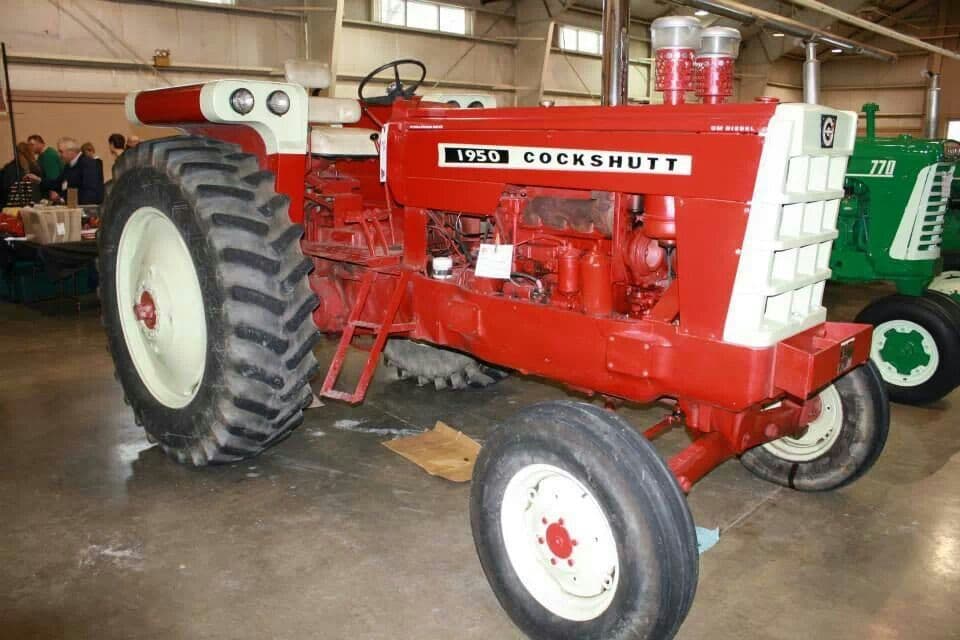

Cockshutt 1950 Tractor

Cockshutt 1950 vs. Similar Tractors

Operating Weight

Poor

Greater than 7% of similar tractors.

Technical Specifications

Engine

Manufacturer: General Motors
Model: Apr-53
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Blower
Cylinders: 4
Displacement (ci): 212.4
Bore (in): 3.875
Stroke (in): 4.5
Rated RPM: 2400
Power Output (hp): -

Transmission

Type: Gear & partial power shift
Forward Gears: 6 & 12
Reverse Gears: 2 & 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 12,975

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 11
Rear Tire Diameter (in): 34
Rear Tire Width (in): 23.1
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
