Cockshutt 1850

Last Updated: June 2024

Overview

The Cockshutt 1850 is a versatile row-crop tractor that comes in different versions featuring engines by Waukesha-Oliver and Perkins. The tractor operates on a two-wheel drive (2WD) system and features a power assist steering system. The engine holds a coolant capacity of 20 quarts and runs at a maximum of 2400 RPM. The tractor offers a 6-speed unsynchronized transmission, with 2-speeds in reverse, and operates with an open center hydraulic system. Depending on the version, the engine displacement varies from 310 cubic inches in the gasoline and LP Gas versions to 354 cubic inches in the diesel version, indicating that this tractor ranges in power to fit various farming needs.

Key Specifications

Category: Row Crop

Transmission: Unsynchronized

Drive Type: 2WD

Operating Weight: 8965 (2WD gas) / 16225 (Ballasted)

Fuel Type: Gasoline / Diesel / LP Gas

Image Gallery

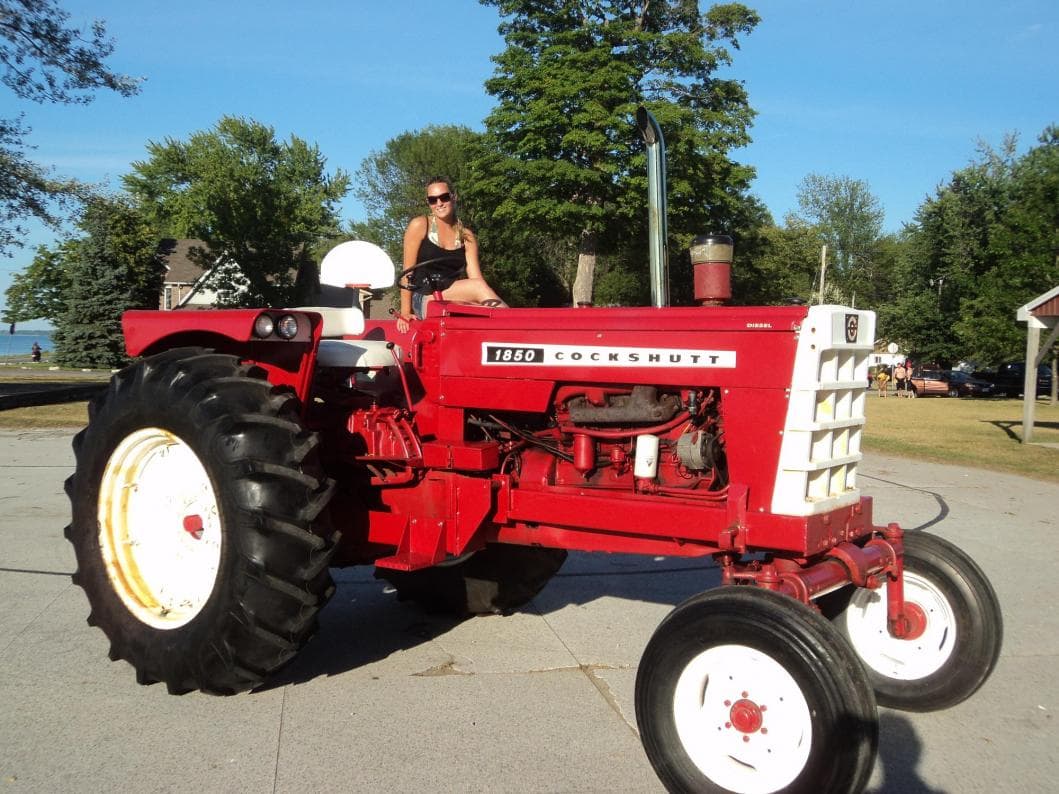

Cockshutt 1850 Tractor

Cockshutt 1850 vs. Similar Tractors

Operating Weight

Excellent

Greater than 98% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver (for gasoline and LP Gas version) / Perkins (for diesel version)
Model: 5.1L 6-cyl gasoline / 5.8L 6-cyl diesel / 5.1L 6-cyl LP Gas
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline / Diesel / LP Gas
Induction Type: Natural Aspirated (Assumed)
Cylinders: 6
Displacement (ci): 310 (for gasoline and LP Gas version) / 354 (for diesel version)
Bore (in): 3.875 (for gasoline and LP Gas version) / 3.88 (for diesel version)
Stroke (in): 4.375 (for gasoline and LP Gas version) / 5.00 (for diesel version)
Rated RPM: 2400
Power Output (hp): -

Transmission

Type: Unsynchronized
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 159.5 (2WD) / 152.5 (4WD)
Width (in): 86.5
Height (in): 78.5
Operating Weight (lb): 8965 (2WD gas) / 16225 (Ballasted)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power assist
Coolant Capacity (qts): 20
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open center
