Cockshutt 1800

Last Updated: June 2024

Overview

The Cockshutt 1800 has a versatile powerplant, available with either a Waukesha-Oliver 5.1L 6-cylinder diesel engine or a 4.6L 6-cylinder gasoline variant. Its transmission system is flexible as well, with a choice between a 6-gear forward and 2 reverse gear setup, or a more performance-oriented partial power shift system with 12 forward and 4 reverse gears. The tractor offers substantial heft, with an operating weight of 9205lbs (2WD) and a ballasted weight of up to 14345lbs. Despite its bulk, the tractor maintains a streamlined presence, measuring 159.5 inches in length, 86.5 inches in width, and 79.9 inches in height (to the top of the steering wheel).

Key Specifications

Transmission: Gear / Partial Power Shift

Operating Weight: 9205 (2WD) / 14345 (Ballasted)

Fuel Type: Diesel / Gasoline

Image Gallery

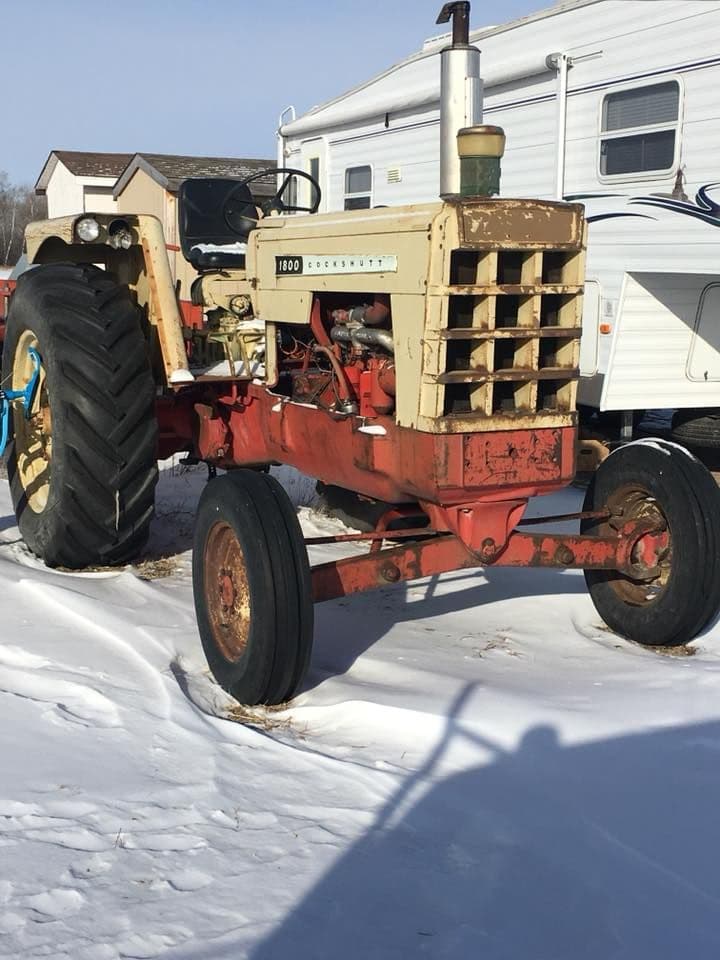

Cockshutt 1800 Tractor

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver
Model: 5.1L 6-cyl diesel / 4.6L 6-cyl gasoline
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel / Gasoline
Induction Type: Oil bath
Cylinders: 6
Displacement (ci): 310 / 283
Bore (in): 3.875 / 3.875
Stroke (in): 4.375 / 4.00
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Gear / Partial Power Shift
Forward Gears: 12-Jun
Reverse Gears: 4-Feb
Total Gears: -

Dimensions

Length (in): 159.5
Width (in): 86.5
Height (in): 79.9 (to top of steering wheel)
Operating Weight (lb): 9205 (2WD) / 14345 (Ballasted)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power Assist
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 7.5
Rear Tire Diameter (in): 34
Rear Tire Width (in): 18.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
