Cockshutt 1600

Last Updated: June 2024

Overview

The Cockshutt 1600 is a row-crop tractor with a chassis configuration of 4x2 2WD indicating it has four wheels in total and two of which are powered. The tractor's steering system is manual, making it easier to navigate the large machine. It offers a dual transmission typing system featuring the 6-speed gear with 2 reverse and 12-forward and 4-reverse for its partial power shift. This model is powered by the Waukesha-Oliver engine with choices of a 4.3L 6-cylinder diesel, 3.8L 6-cylinder gasoline, or a 3.8L 6-cylinder LP Gas engine. The Cockshutt 1600's operating weight stands at 7400 lbs or 3356 kg, making it a heavy-duty machine capable of performing in various farming operations.

Key Specifications

Category: Row Crop

Transmission: gear and partial power shift

Drive Type: 2WD

Operating Weight: 7400

Fuel Type: Diesel, Gasoline, LP Gas

Image Gallery

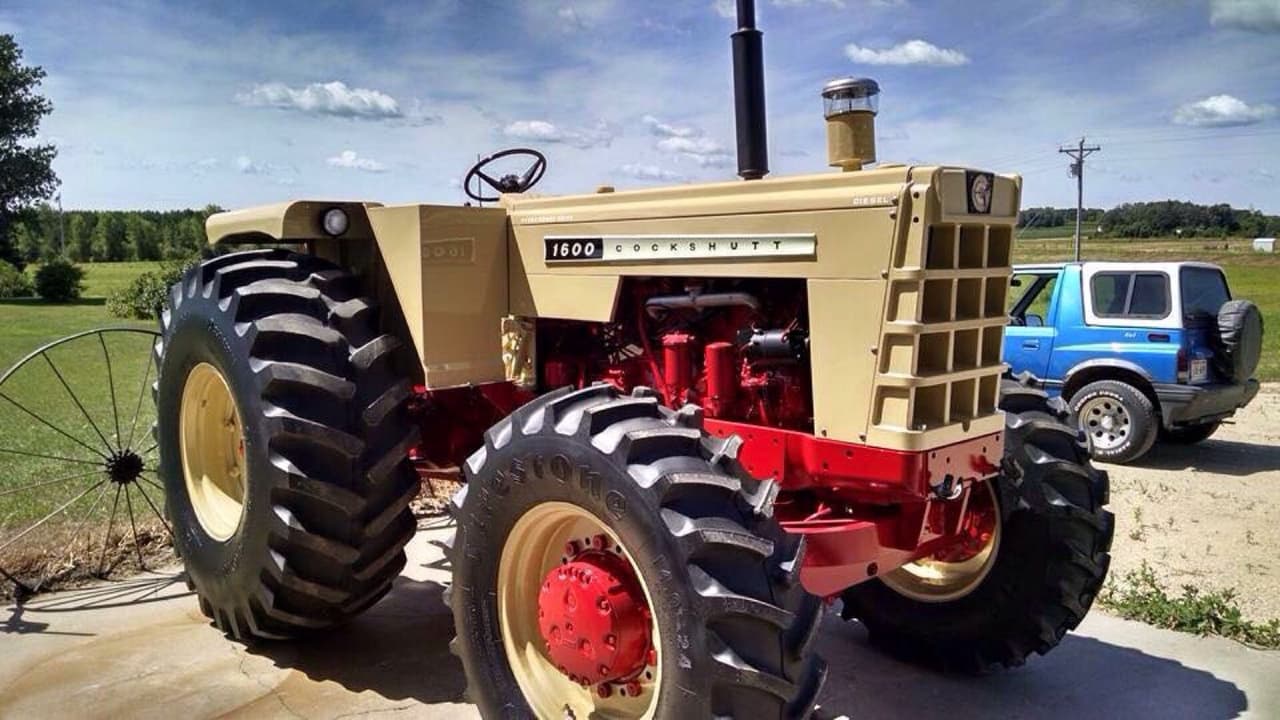

Cockshutt 1600 Tractor

Cockshutt 1600 vs. Similar Tractors

Operating Weight

Below Average

Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukesha-Oliver
Model: 4.3L 6-cyl diesel / 3.8L 6-cyl gasoline / 3.8L 6-cyl LP gas
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel, Gasoline, LP Gas
Induction Type: -
Cylinders: 6
Displacement (ci): 265 (for Diesel), 231 (for Gasoline and LP Gas)
Bore (in): 3.75 (for Diesel), 3.50 (for Gasoline and LP Gas)
Stroke (in): 4
Rated RPM: 1900
Power Output (hp): -

Transmission

Type: gear and partial power shift
Forward Gears: 6 (for gear type), 12 (for partial power shift type)
Reverse Gears: 2 (for gear type), 4 (for partial power shift type)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 7400

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: agriculture
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
