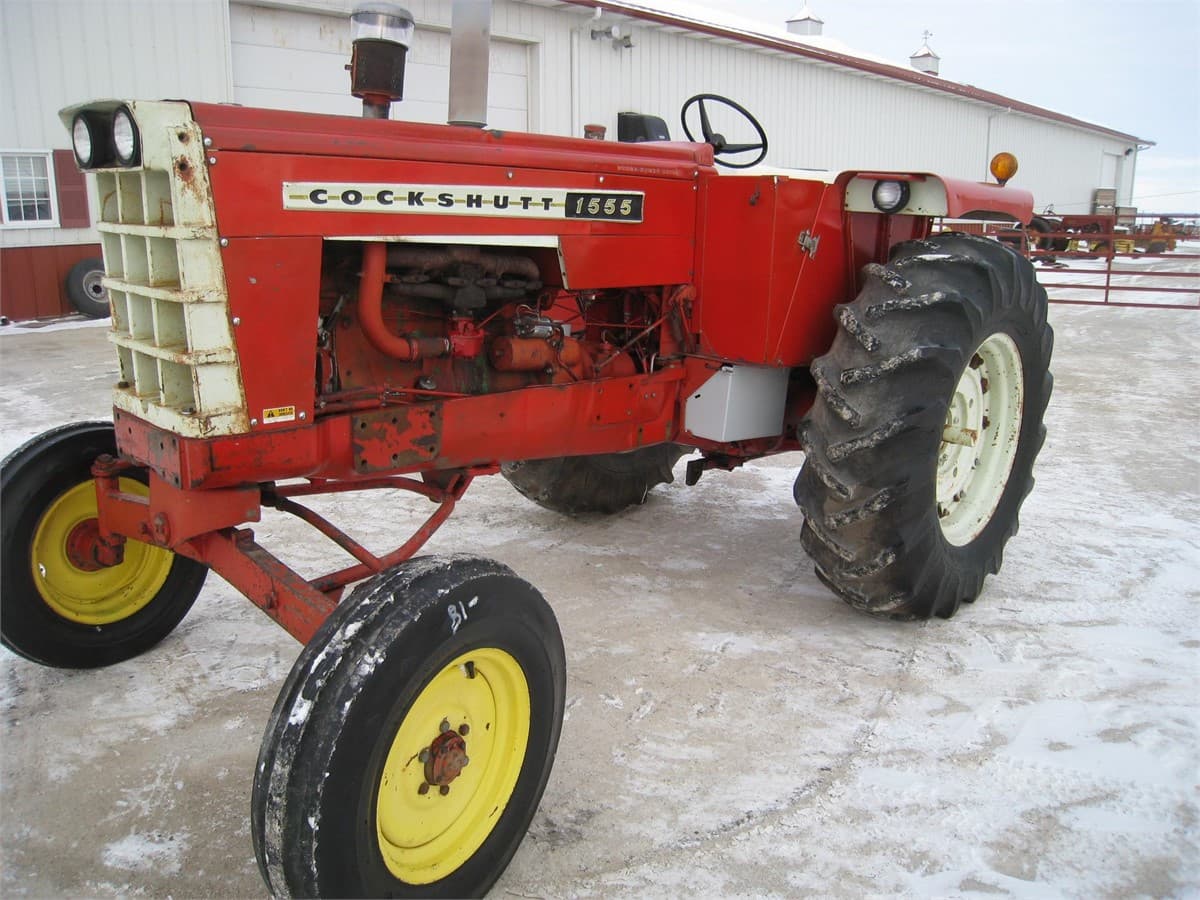

Cockshutt 1555

Last Updated: June 2024

Overview

The Cockshutt 1555 is a versatile row-crop tractor that combines power and ease-of-use. This 2WD tractor is equipped with a Waukesha-Oliver engine which offers two options: a 3.8L 6-cyl diesel or a 3.8L 6-cyl gasoline. The engine has a displacement of 232 ci and a rating of 2200 RPM. With a hydrapower and unsynchronized gear, the 1555 features a 12 forward and 4 reverse partial power shift transmission. The chassis features a 4x2 2WD system coupled with power steering ensuring maneuverability. The tractor can comfortably operate with ag rear tires of 15.5 or 12.4 and ag front tires of 7.50 or 5.50. The open center hydraulic system adds functionality.
Show more...

Key Specifications

Category: Row Crop

Transmission: Hydra-Power, Partial power shift, Unsynchronized gear

Drive Type: 2WD

Operating Weight: 6841

Fuel Type: Diesel / Gasoline

Image Gallery

Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor Cockshutt 1555 Tractor

Cockshutt 1555 vs. Similar Tractors

Operating Weight
Below Average
Greater than 25% of similar tractors.

Technical Specifications

Engine

Manufacturer
Waukesha-Oliver
Model
3.8L 6-cyl diesel / 3.8L 6-cyl gasoline
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel / Gasoline
Induction Type
-
Cylinders
6
Displacement (ci)
232
Bore (in)
3.625
Stroke (in)
3.75
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Hydra-Power, Partial power shift, Unsynchronized gear
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
154.5
Width (in)
81.5
Height (in)
97.625 (Exhaust), 80 (Steering Wheel)
Operating Weight (lb)
6841

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
20
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag Tires
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
