Cockshutt 1355

Last Updated: June 2024

Overview

The Cockshutt 1355 is a utility tractor manufactured by Cockshutt, a part of White. Its chassis is a 4x2 2WD with power steering, and an 8-speed gear transmission. The tractor uses a Fiat 8045 engine with direct injection and a liquid-cooled inline configuration. The engine has a displacement of 190.4 ci, operating at a rated RPM of 2400. The 2WD variant of the tractor is 122 inches long, 70 inches wide, and weighs around 4410 lbs, while the 4WD variant is slightly larger and heavier.

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4410 for 2WD and 4940 for 4WD

Fuel Type: Diesel

Image Gallery

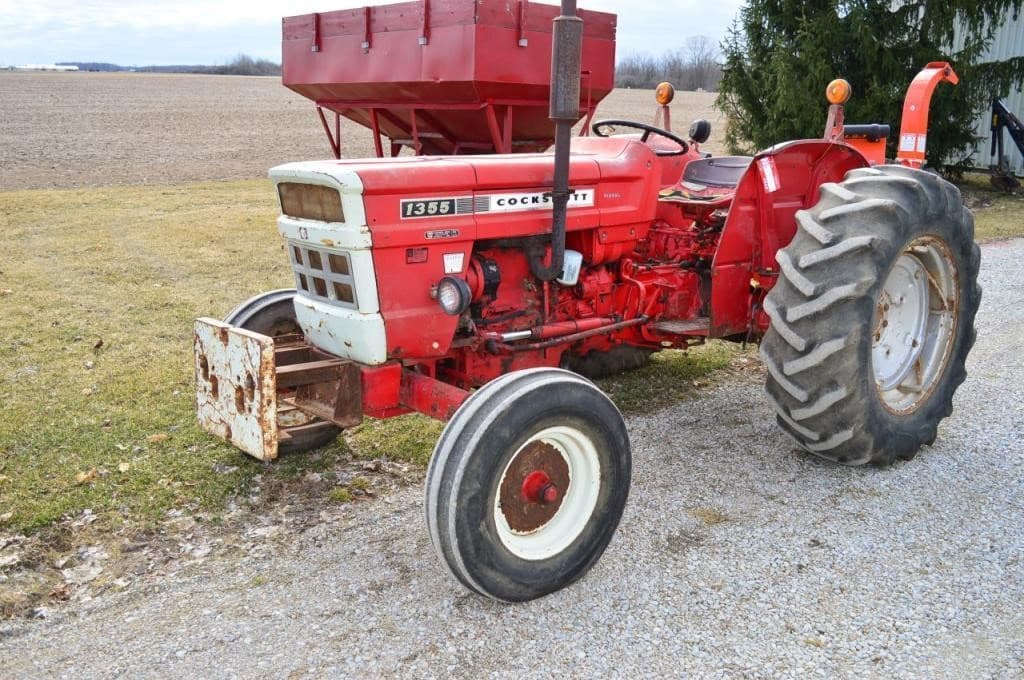

Cockshutt 1355 Tractor

Cockshutt 1355 vs. Similar Tractors

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: Fiat
Model: 8045
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct injection
Cylinders: 4
Displacement (ci): 190.4
Bore (in): 3.74
Stroke (in): 4.33
Rated RPM: 2400
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 122 for 2WD and 127 for 4WD
Width (in): 70 for 2WD and 72 for 4WD
Height (in): 60.625 for 2WD and 63.25 for 4WD
Operating Weight (lb): 4410 for 2WD and 4940 for 4WD

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 14
Front Tire Diameter (in): -
Front Tire Width (in): 6
Rear Tire Diameter (in): -
Rear Tire Width (in): 14.9
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: -
