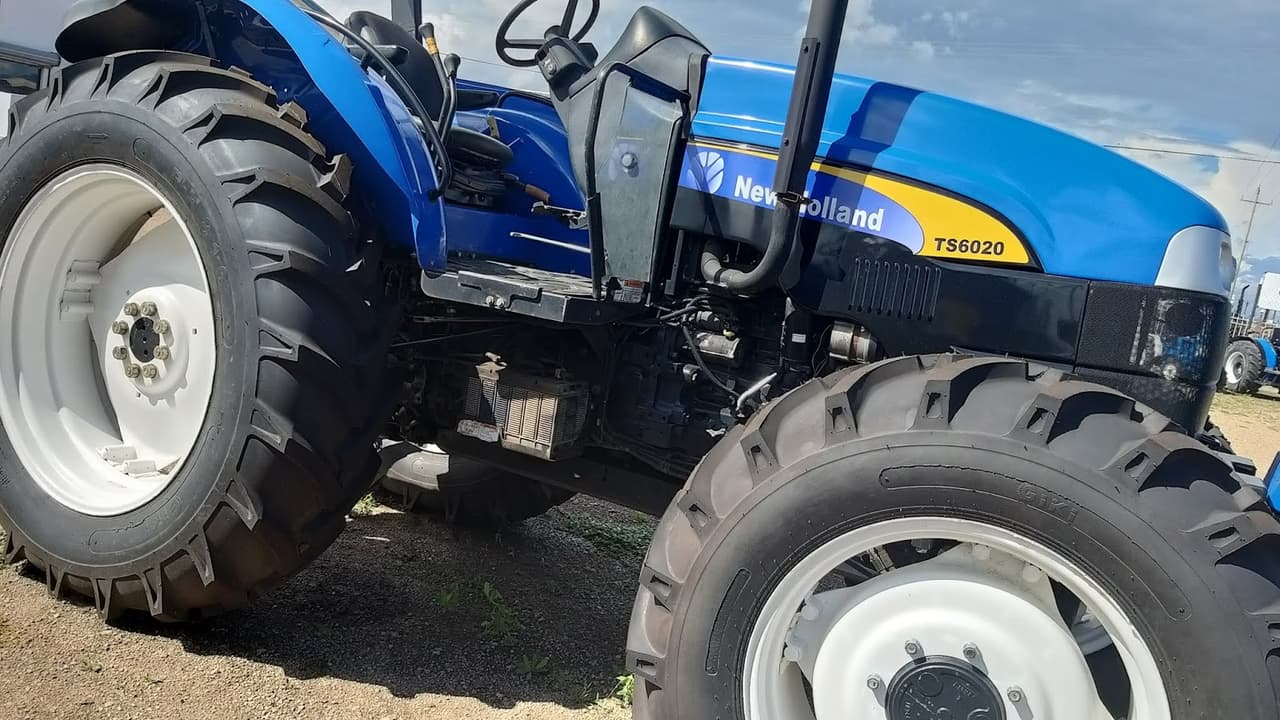

CNH America LLC (New Holland) TS6020

Last Updated: July 2024

Overview

The New Holland TS6020 is a row-crop tractor manufactured by CNH America LLC (New Holland). It is powered by an FPT NEF 4-cylinder turbocharged intercooled diesel engine with a displacement of 274 cubic inches. The engine produces a maximum power output of 96.32 hp during testing, lower than the initially stated 110 hp. The tractor has an 8-speed constant mesh transmission with 8 forward and 2 reverse gears. It features a 4x2 2WD chassis, hydrostatic power steering, and an open center hydraulic system. Key specifications include a maximum torque of 368 lb-ft at 1001 rpm, a torque rise of 63.4%, and hydraulic capabilities with pump delivery rates up to 18.8 GPM. The operating weight recorded during testing was 7740 lbs with the operator. Additional details on tires, sound levels, and static weight distribution have been added based on the test results.

Key Specifications

Category: Row Crop

Power Output: 96.32

Transmission: constant mesh

Drive Type: 2WD

Operating Weight: 7740

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer: FPT (Fiat Powertrain Technologies)
Model: NEF
Cooling Type: liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: diesel
Induction Type: turbocharged intercooled
Cylinders: 4-cylinder
Displacement (ci): 274
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2200
Power Output (hp): 96.32

Transmission

Type: constant mesh
Forward Gears: -
Reverse Gears: -
Total Gears: 8 forward and 2 reverse

Dimensions

Length (in): 155.8
Width (in): -
Height (in): 111.9
Operating Weight (lb): 7740

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2012
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS/Cab available
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: December 6 to December 13, 2010

Maximum Power and Fuel Consumption

Maximum Power (1 Hour): 96.32 HP (71.82 kW) at 1949 rpm
Fuel Consumption at Maximum Power: 6.14 Gal/hr (23.25 l/h) with a fuel efficiency of 0.446 lb/hp.hr (0.271 kg/kW.h)
Standard Power Take-off Speed (540 rpm): 95.77 HP (71.41 kW) at 1887 rpm with a fuel consumption of 6.05 Gal/hr (22.91 l/h) and a fuel efficiency of 0.442 lb/hp.hr (0.269 kg/kW.h)

Drawbar Performance

Power at Rated Engine Speed: Not provided in the summary data
Fuel Consumption at Rated Speed: Not provided in the summary data

Torque and Engine Performance

Maximum Torque: 368 lb.-ft. (499 Nm) at 1001 rpm
Torque Rise: 63.4% with a power increase at 1800 rpm of 23%

Hydraulic Performance

Maximum Force Exerted (1 external lift cylinder/2 external lift cylinders): 4608 lbs (20.50 kN) / 6174 lbs (27.46 kN)
Pump Delivery Rate:
Single Pump System: 13.4 GPM (50.8 l/min) at minimum pressure and rated engine speed
Two Pump System: 18.8 GPM (71.2 l/min) at minimum pressure and rated engine speed
Hydraulic Power (Single Pump/Twin Pump): 16.6 HP (12.4 kW) / 18.9 HP (14.1 kW)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (540 rpm): 15.82 Hp.hr/gal (3.12 kW.h/l)
Fuel Consumption: Varies between 1.99 Gal/hr (7.55 l/h) at minimum power to 6.48 Gal/hr (24.54 l/h) at maximum power

Nebraska Tractor Test Lab. (2010). Test 1981: New Holland TS6020. Nebraska Tractor Tests. 2369. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2369
