Cletrac ED2

Last Updated: June 2024

Overview

The Cletrac model ED2 is a compact and versatile tractor equipped with a Buda 4DT196 diesel engine. The engine, cooled by a liquid system, contains 4 cylinders with a displacement of 196 ci and a bore/stroke ratio of 3.625x4.75 inches. This tractor possesses a gear transmission with 3 forward gears and 1 reverse gear. With an operating weight of 5800 lbs, the ED2 is solidly built for various tasks. The tractor measures 105.5 inches in length, 8 inches in width, and a hood height of 55.5 inches.

Key Specifications

Transmission: Gear

Operating Weight: 5800

Fuel Type: Diesel

Image Gallery

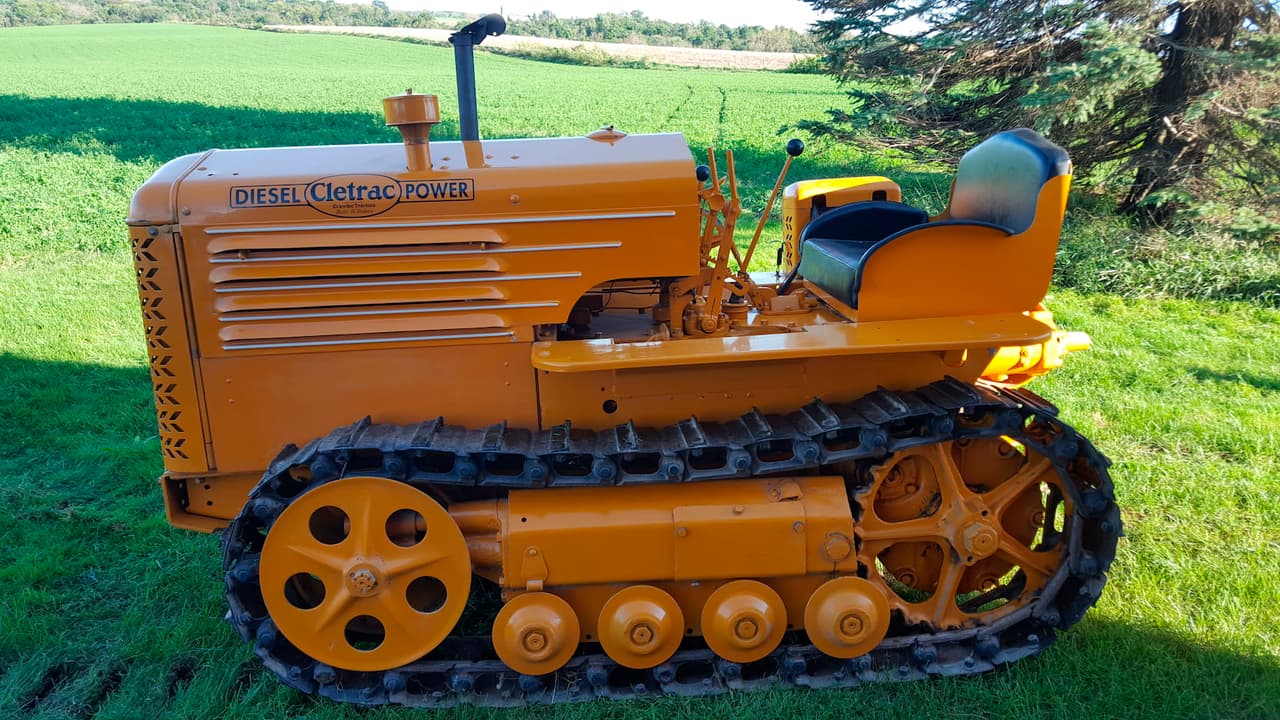

Cletrac ED2 Tractor

Technical Specifications

Engine

Manufacturer: Buda
Model: 4DT196
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 196
Bore (in): 3.625
Stroke (in): 4.75
Rated RPM: -
Power Output (hp): -

Transmission

Type: Gear
Forward Gears: 3
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 105.5
Width (in): 96
Height (in): 55.5 (hood height)
Operating Weight (lb): 5800

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
