Claas XERION 5000

Last Updated: July 2024

Overview

The Claas XERION 5000 is a powerful tractor with a Mercedes engine. It has a 6-cylinder turbocharged and intercooled engine with a displacement of 781 ci and a rated power output of 445.84 hp at 1900 rpm. The transmission combines ZF ECCOM 3.5 and Hydrostatic-mechanical types. Key updates include the engine serial number, accurate displacement and rated power output, tire size, operating weight, and additional details from the test results regarding performance, dimensions, and specifications.

Key Specifications

Power Output: 445.84

Transmission: ZF ECCOM 3.5 and Hydrostatic-mechanical

Operating Weight: 42175

Image Gallery

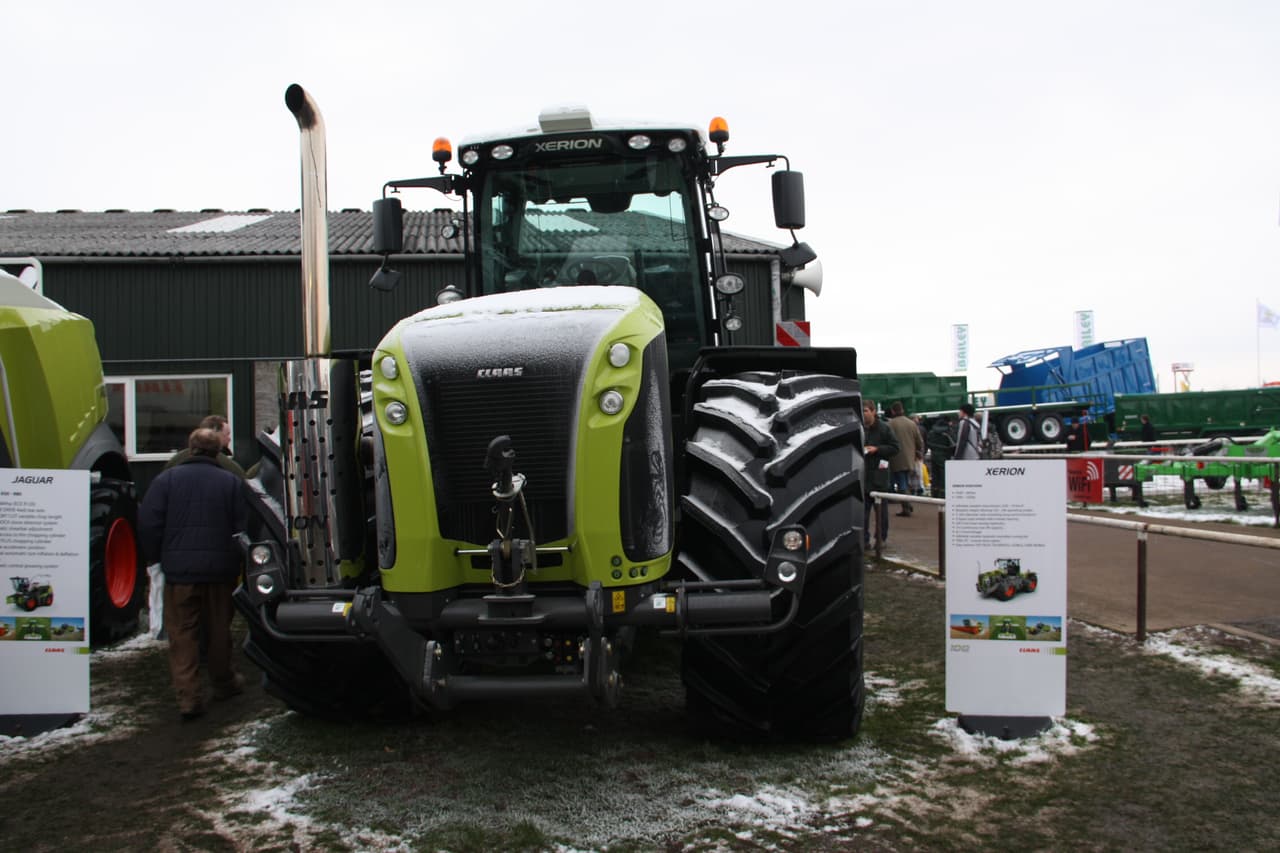

Claas XERION 5000 Tractor

Technical Specifications

Engine

Manufacturer: Mercedes
Model: ECE-R-24-03, ECE R 24
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: Turbo, charge air cooler and Turbocharged and intercooled
Cylinders: 6
Displacement (ci): 781
Bore (in): -
Stroke (in): -
Rated RPM: 1900
Power Output (hp): 445.84

Transmission

Type: ZF ECCOM 3.5 and Hydrostatic-mechanical
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 299
Width (in): 98
Height (in): 153
Operating Weight (lb): 42175

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 38
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: 710/70R42
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: Electrohydraulically disengaged spring-loaded brake, Hydraulically actuated wet multi-disc brakes
Hydraulic System Type: Closed Center - pressure and flow compensating

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 3, 2020 to March 23, 2021

Maximum Power and Fuel Consumption

Maximum Power: 487.14 HP (363.26 kW) at 1599 rpm
Fuel Consumption at Maximum Power: 24.55 Gal/hr (92.93 l/h) with a fuel efficiency of 0.352 lb/hp.hr (0.214 kg/kW.h)
DEF Consumption: 0.59 Gal/hr (2.24 l/h)

Drawbar Performance

Power at Rated Engine Speed (4.18 mph, Manual Mode): 409.01 HP (305.00 kW) with a drawbar pull of 36,683 lbs (163.17 kN) and a speed of 4.18 mph (6.73 km/h)
Fuel Consumption at Rated Speed: 0.409 lb/hp.hr (0.249 kg/kW.h) with a fuel efficiency of 17.05 Hp.hr/gal (3.36 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1798 lb.-ft. (2438 Nm) at 1100 rpm
Torque Rise: 43.3% with a power increase at 1599 rpm of 7.4%

Hydraulic Performance

Maximum Force Exerted: 21739 lbs (96.7 kN) at hitch points
Pump Delivery Rate: 51.0 GPM (192.9 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 71.6 HP (53.4 kW) at delivery pressure of 2551 psi (176 bar)

NTTL.(2021). Nebraska OECD tractor test 2229 for Claas Xerion 5000 Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
