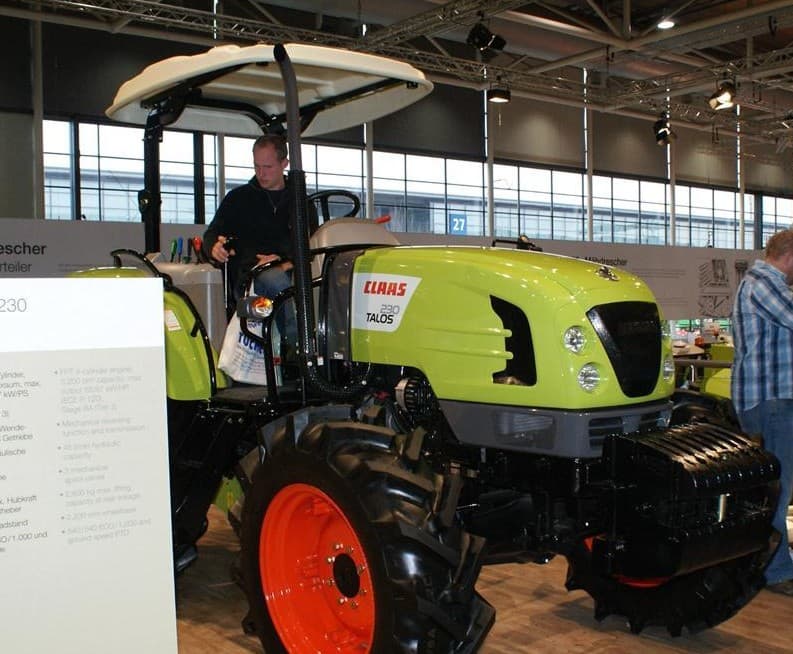

Claas Talos 230

Last Updated: June 2024

Overview

The Claas Talos 230 is a versatile utility tractor with a robust 4-cylinder, turbocharged and intercooled diesel engine which provides a power output of 87.2 hp. The engine cools effectively with liquid and it's rated 2300 RPM. Engine is mated to a 20-speed synchromesh transmission which powers the MFWD 4WD system for excellent traction and maneuverability. With a substantial operating weight from 6195 lbs with ROPS to 6680 lbs with a Cab this tractor delivers unrivaled stability and power for a wide range of tasks. The tractor stands at a height of 103.3 inches with ROPS and slightly lesser 102.4 inches with its cab. Timely operation was nailed down with this model with it's electric starter system.
Show more...

Key Specifications

Category: Utility

Power Output: 87.2

Transmission: Synchromesh

Drive Type: 4WD

Operating Weight: 6195 with ROPS / 6680 with Cab

Fuel Type: Diesel

Image Gallery

Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor Claas Talos 230 Tractor

Claas Talos 230 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Hitch Capacity
Above Average
Greater than 88% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
FPT
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
195.3
Bore (in)
3.9
Stroke (in)
4.09
Rated RPM
2300
Power Output (hp)
87.2

Transmission

Type
Synchromesh
Forward Gears
20
Reverse Gears
20
Total Gears
-

Dimensions

Length (in)
157.2
Width (in)
-
Height (in)
103.3 with ROPS / 102.4 with Cab
Operating Weight (lb)
6195 with ROPS / 6680 with Cab

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
13228
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
