Claas Challenger 95E

Last Updated: June 2024

Overview

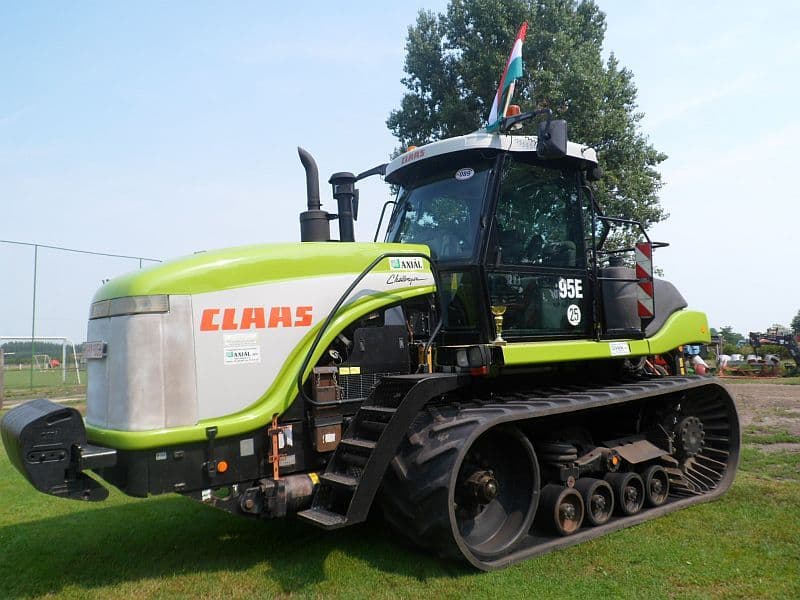

The Claas Challenger 95E is an agricultural crawler tractor manufactured by Claas from 1998 to 2001. It is equipped with a 12.0 L six-cylinder diesel engine produced by Caterpillar, offering 410 horsepower. The engine is turbocharged and intercooled, cooled by a liquid system and has been rated to run at a maximum of 2100 RPM. The tractor has a full powershift transmission with 10 forward and 2 reverse gears. The chassis is designed as a crawler, making it adept at handling difficult terrain and heavy-duty farm work. The tractor utilizes hydrostatic differential steering and hydraulic caliper disc brakes to provide excellent control and safety. The operator station comes standard as a cab and the tractor has a size of a 25-inch track.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 410

Transmission: Full Power Shift

Operating Weight: 35520

Fuel Type: Diesel

Claas Challenger 95E vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
729
Bore (in)
5.118
Stroke (in)
5.906
Rated RPM
2100
Power Output (hp)
410

Transmission

Type
Full Power Shift
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
35520

Power Take-Off (PTO)

PTO Type
Rear
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
-
Steering Type
Hydrostatic Differential Steering
Coolant Capacity (qts)
80
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
25-in Track
Manufacture - End Year
2001
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (Standard)
Starter Type
Electric
Brake Type
Hydraulic Caliper Disc
Hydraulic System Type
Closed Center
