Claas Challenger 85E

Last Updated: June 2024

Overview

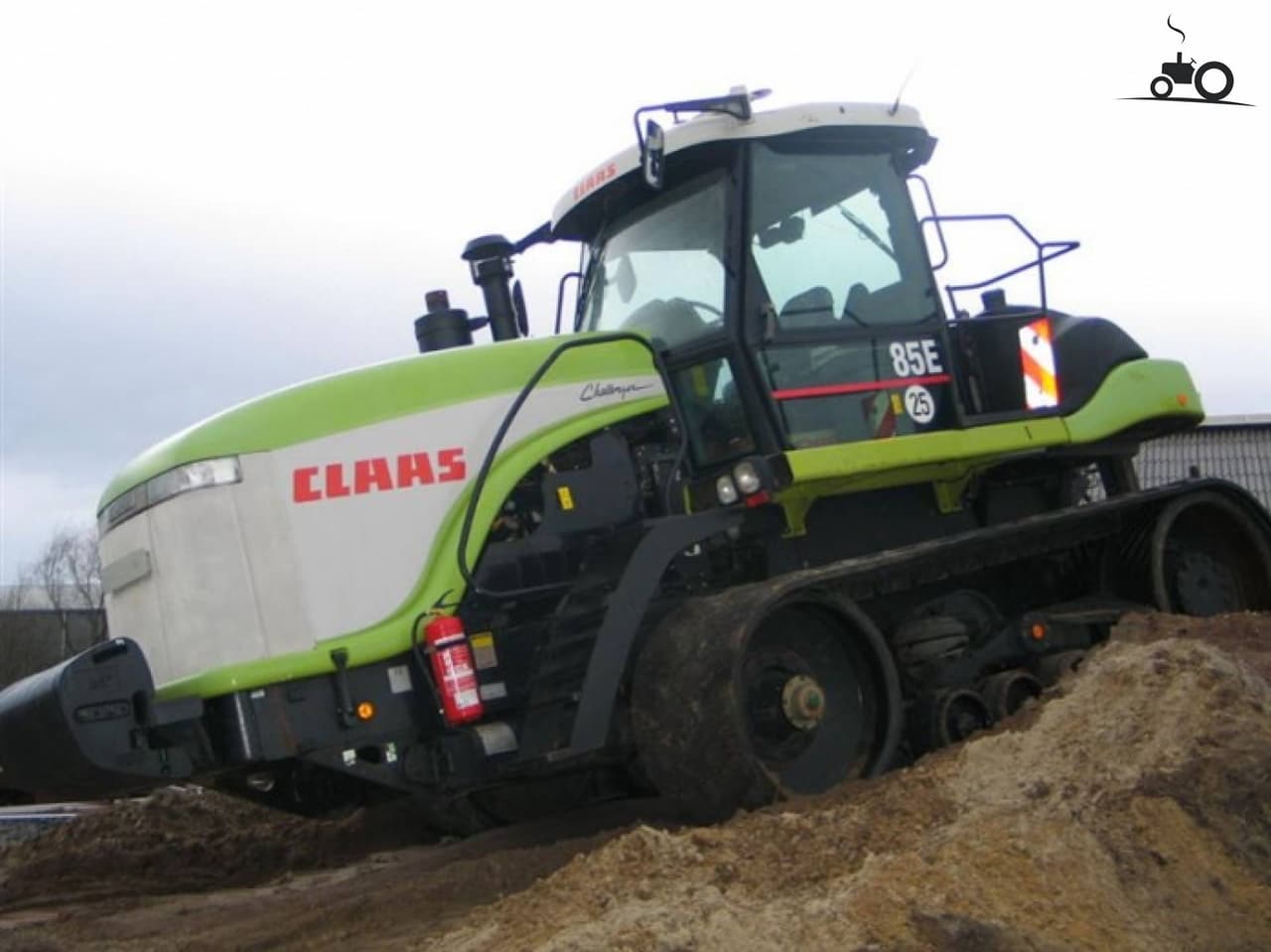

The Claas Challenger 85E is an Agricultural Crawler Tractor ideal for heavy-duty agricultural work. Powering the model is a reliable Caterpillar engine which is turbocharged and intercooled, producing an impressive 375 horsepower. It has a 6-cylinder, liquid-cooled design that ensures a steady flow of power for continuous and strenuous operations. The tractor is rather large, with a weight of 34,895 pounds and a wheelbase measuring 107 inches. It features a full power shift transmission with ten forward gears and two reverse gears, offering the operator a broad range of speed options. The Challenger 85E also comes with hydrostatic differential steering, providing the operator with optimal control over the machine. Engine cooling is incredibly efficient thanks to an 80-quart coolant capacity.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 375

Transmission: Full Power Shift

Operating Weight: 34,895

Fuel Type: Diesel

Claas Challenger 85E vs. Similar Tractors

Power Output
Above Average
Greater than 84% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Caterpillar
Model
-
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
6
Displacement (ci)
729
Bore (in)
5.118
Stroke (in)
5.906
Rated RPM
2100
Power Output (hp)
375

Transmission

Type
Full Power Shift
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
34,895

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
-
Steering Type
Hydrostatic Differential Steering
Coolant Capacity (qts)
80
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
25-in Track
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed
