Claas Axion 960

Last Updated: June 2024

Overview

The Claas Axion 960 is a robust row-crop tractor that features a 4x4 MFWD 4WD chassis. It has a turbocharged and intercooled diesel engine by FPT with six cylinders and a displacement of 531.5 ci. The tractor's engine is liquid-cooled and maintains maximum power output of 438.5 hp. The tractor utilizes a continuously variable transmission, which provides it with an infinite number of forward and reverse gears. The Axion 960's length is 226.1 inches and it has a rear hitch category of III/IV. Further details such as the wheelbase and specific hitch lift capacities were not available.

Key Specifications

Category: Row Crop

Power Output: 438.5

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Fuel Type: Diesel

Image Gallery

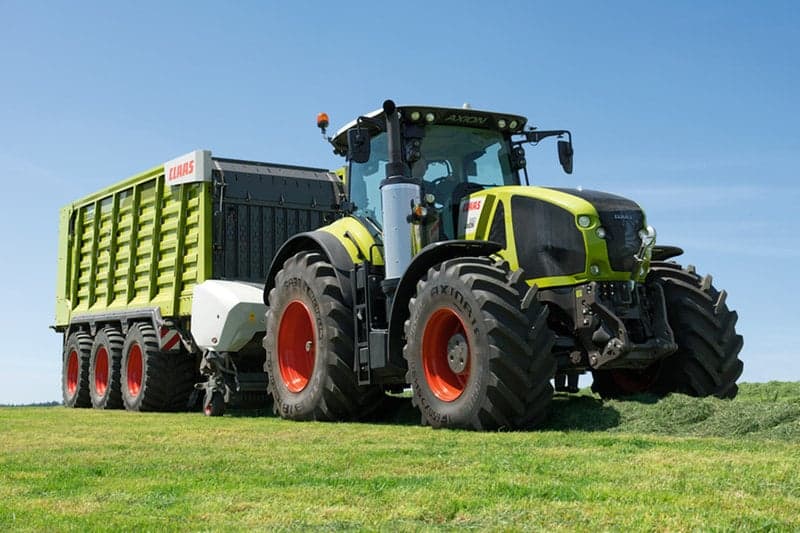

Claas Axion 960 Tractor

Claas Axion 960 vs. Similar Tractors

Power Output

Excellent

Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged Intercooled
Cylinders: 6
Displacement (ci): 531.5
Bore (in): 4.61
Stroke (in): 5.31
Rated RPM: -
Power Output (hp): 438.5

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 226.1
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/IV
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Load Sensing
