Claas Axion 940

Last Updated: June 2024

Overview

The Axion 940 by Claas is a row-crop tractor equipped with a 4x4 MFWD 4WD chassis and a power steering system. Notably, the Axion 940 utilizes a continuously variable transmission with infinite gear ratios. Its engine, manufactured by FPT, is a turbocharged and intercooled diesel unit featuring six cylinders and a displacement of 531.5 cubic inches. The tractor operates at a maximum of 2150 RPM and outputs 374.1 horsepower. The durable and robust structure, with a length of 220.1 inches and height of 135.8 inches, allows it to handle a wide variety of heavy-duty farming tasks. With its weight of 28792 lbs, it demonstrates exceptional stability and strength in the field.

Key Specifications

Category: Row Crop

Power Output: 374.1

Transmission: Continuously variable transmission

Drive Type: 4WD

Operating Weight: 28792

Fuel Type: Diesel

Image Gallery

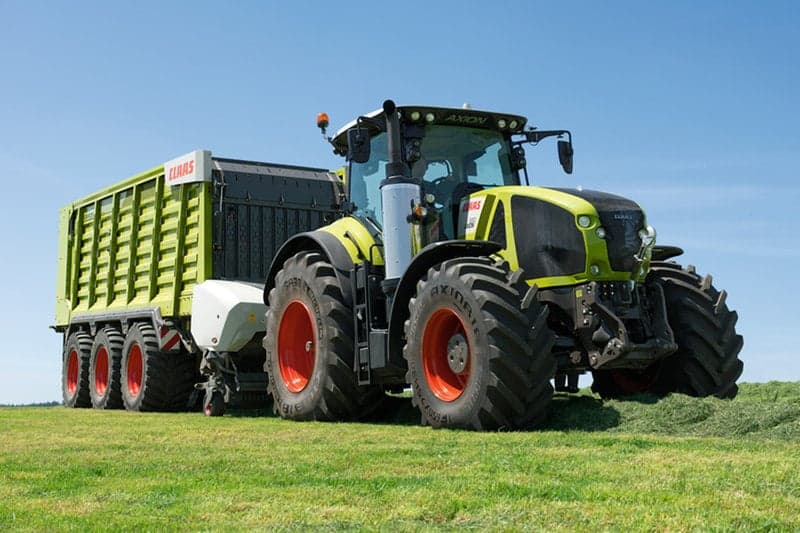

Claas Axion 940 Tractor

Claas Axion 940 vs. Similar Tractors

Power Output

Excellent

Greater than 92% of similar tractors.

Operating Weight

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 6
Displacement (ci): 531.5
Bore (in): 4.61
Stroke (in): 5.31
Rated RPM: 2150
Power Output (hp): 374.1

Transmission

Type: Continuously variable transmission
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 220.1
Width (in): -
Height (in): 135.8
Operating Weight (lb): 28792

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Category III/IV
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Load Sensing
