Claas Axion 920

Last Updated: June 2024

Overview

The Claas Axion 920 is a Row-Crop tractor that features a powerful FPT engine, capable of delivering a power output beteen 311.1 to 316.5 horsepower depending on the rating method. Equipped with a 4x4 MFWD 4WD chassis and a Continuously Variable Transmission (CVT) for ease of control and navigation. The engine boasts 6 turbocharged intercooled diesel running cylinders. Both the front and rear tires are standard Ag style, with the front dimensions being 620/75R30 and the rear 710/85R38. The Axion 920 is quite sizable with a length of 220.1 inches and a cab height of 135.8 inches. The total operating weight stands at 28307 lbs.

Key Specifications

Category: Row Crop

Power Output: 316.5 (EC 97/98); 311.1 (ECE R120); 315.1 (Max ECE R120)

Transmission: Continuously Variable Transmission (CVT)

Drive Type: 4WD

Operating Weight: 28307

Fuel Type: Diesel (Turbocharged Intercooled)

Image Gallery

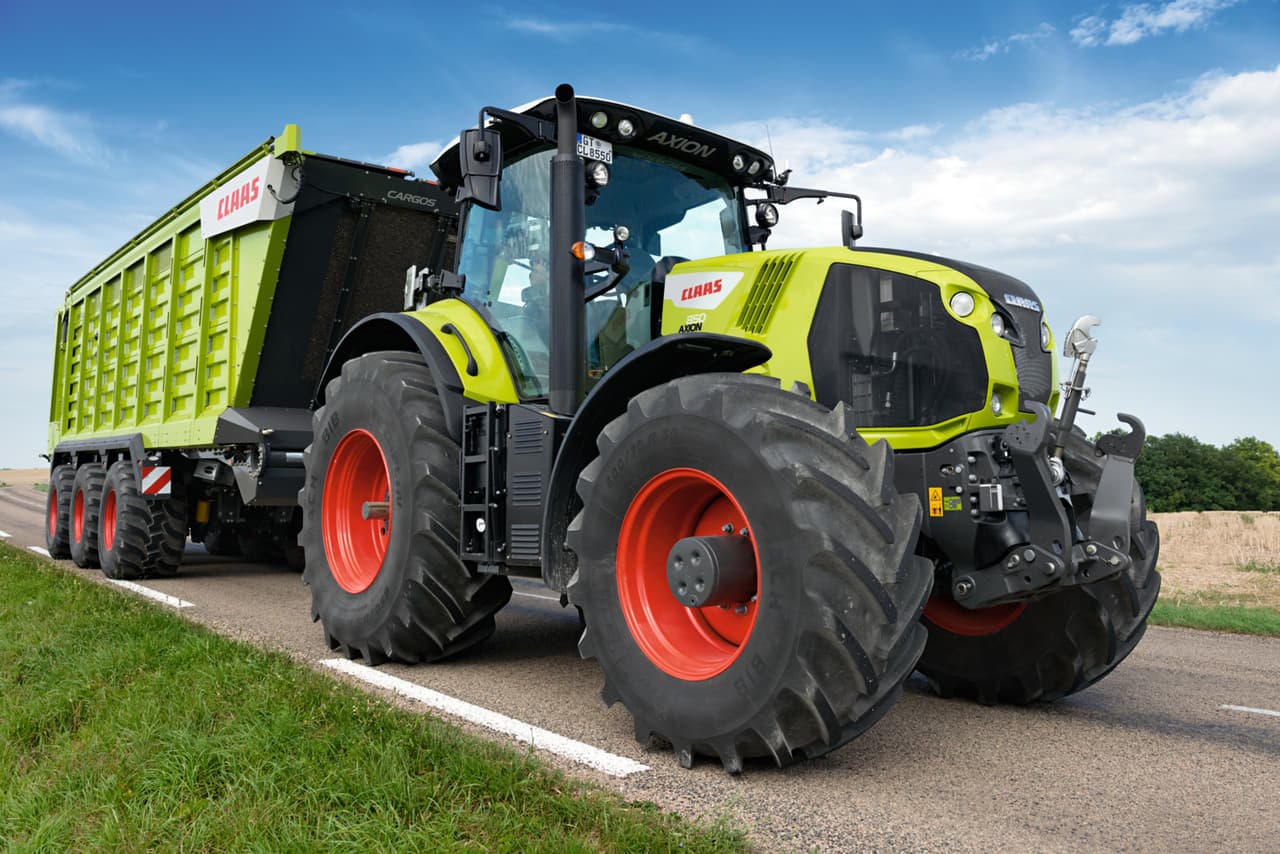

Claas Axion 920 Tractor

Claas Axion 920 vs. Similar Tractors

Operating Weight

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: FPT
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel (Turbocharged Intercooled)
Induction Type: Turbocharged Intercooled
Cylinders: 6
Displacement (ci): 531.5
Bore (in): 4.61
Stroke (in): 5.31
Rated RPM: 2150
Power Output (hp): 316.5 (EC 97/98); 311.1 (ECE R120); 315.1 (Max ECE R120)

Transmission

Type: Continuously Variable Transmission (CVT)
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 220.1
Width (in): -
Height (in): 135.8 (Cab)
Operating Weight (lb): 28307

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 30
Front Tire Width (in): 24.4
Rear Tire Diameter (in): 38
Rear Tire Width (in): 27.95
Front/Rear Rim Diameter (in): -
Tire Type: Standard (Ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/IV
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: -
Brake Type: -
Hydraulic System Type: Load Sensing
