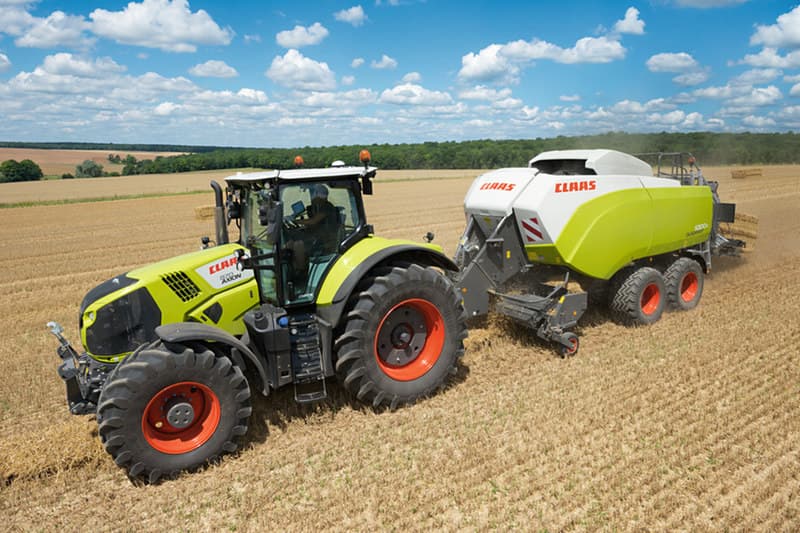

Claas Axion 810

Last Updated: June 2024

Overview

The Claas Axion 810 is a robust and efficient Row-Crop tractor perfect for accomplishing a wide range of farming tasks. It comes equipped with a robust 6-cylinder Diesel engine by DPS and FPT, which may be intercooled and turbocharged, and delivers power ranging from 178 to 200 hp depending on the exact model. The engine operates at a top speed of 2200 RPM and the liquid-cooled system ensures optimum operating temperatures at all times. This machine features a power shift transmission with 24 gears for both forward and reverse directions, allowing for versatile and precise maneuverability in varying field conditions. The Axion 810 is built on a 4x4 MFWD 4WD chassis, demonstrating excellent traction capabilities. Its operating weight is approximately 15,760 lbs, signifying its solid build and capacity to perform heavy-duty tasks. All in all, the Claas Axion 810 signifies durability and performance, making it a reliable asset in any farming operation.
Show more...

Key Specifications

Category: Row Crop

Power Output: 178 or 200 (Discrepancy in data)

Transmission: Power shift

Drive Type: 4WD

Operating Weight: 15,760

Fuel Type: Diesel

Claas Axion 810 vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
DPS, FPT
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged, Intercooled
Cylinders
6
Displacement (ci)
414.2 / 410.6
Bore (in)
4.09
Stroke (in)
5.2
Rated RPM
2200
Power Output (hp)
178 or 200 (Discrepancy in data)

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
223
Width (in)
-
Height (in)
124.1
Operating Weight (lb)
15,760

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
PFC
