Claas Arion 630

Last Updated: June 2024

Overview

The Claas Arion 630 is a row-crop tractor designed for versatile agricultural uses. It features a 4x4 MFWD 4WD chassis, ensuring maximum traction on various terrains. Powering the Arion 630 is a 6-cylinder DPS engine that displaces 414.2 cubic inches and offers liquid-cooled, turbocharged and intercooled operation—crucial specs that demonstrate this tractor's potential for high performance and reliability. The engine outputs 145.5HP at a rated RPM of 2200. The tractor's total weight is 13710 lbs, offering a sturdy, weighty design that can deal with demanding tasks without compromising stability. For specific agricultural tasks, it comes with 24-speed partial power-shift transmission, facilitating varied speed ranges and ease of control. The load-sensing hydraulic system makes it a capable performer in a range of operations that require hydraulic inputs.

Key Specifications

Category: Row Crop

Power Output: 145.5

Transmission: Partial power shift with power shuttle

Drive Type: 4WD

Operating Weight: 13710

Fuel Type: Diesel

Image Gallery

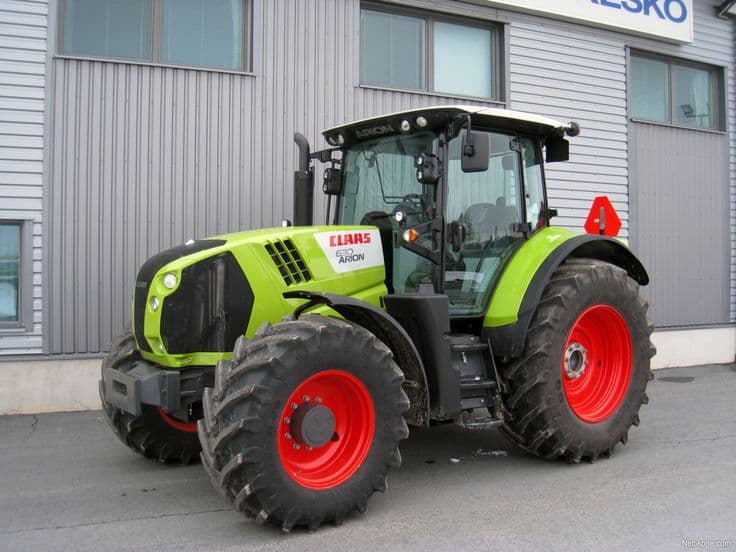

Claas Arion 630 Tractor

Claas Arion 630 vs. Similar Tractors

Power Output

Average

Greater than 51% of similar tractors.

Operating Weight

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: DPS (John Deere Power Systems)
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 24-valve
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 6
Displacement (ci): 414.2
Bore (in): -
Stroke (in): -
Rated RPM: 2200
Power Output (hp): 145.5

Transmission

Type: Partial power shift with power shuttle
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 203
Width (in): -
Height (in): 118.4 (cab)
Operating Weight (lb): 13710

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: -
Brake Type: -
Hydraulic System Type: Load sensing
