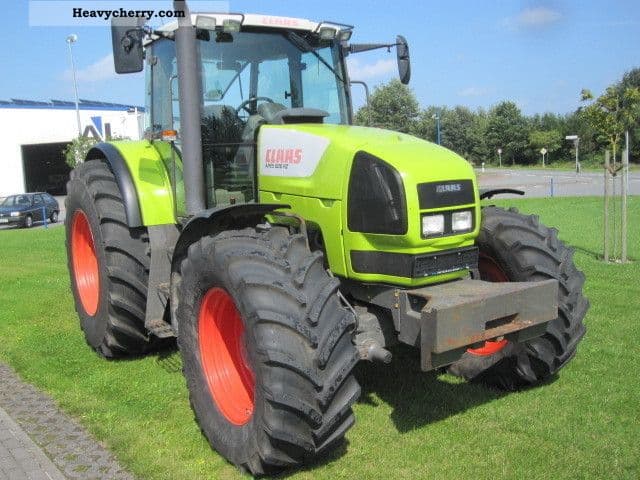

Claas Ares 826

Last Updated: June 2024

Overview

The Claas Ares 826 tractor is a powerful and reliable machine, designed for a variety of heavy-duty farming tasks. It features a robust 6-cylinder DPS 6068 HRT engine with an intercooled turbo, capable of generating an impressive 181 horsepower. The tractor operates with a manual transmission and offers 32 speeds in both forward and reverse, providing flexibility and precision in any task. It boasts a comfortable operating weight of 14,454 lbs and a generous wheelbase of 113.4 inches, ensuring stability and control in all situations. With its superior steering system that employs hydrostatic power, handling the Ares 826 becomes very convenient.
Show more...

Key Specifications

Power Output: 181 hp

Transmission: Manual

Drive Type: 4WD

Operating Weight: 14,454 lbs

Technical Specifications

Engine

Manufacturer
DPS
Model
6068 HRT
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled Turbo
Cylinders
6
Displacement (ci)
414.2 / 410.6
Bore (in)
4.193 inches
Stroke (in)
5.00 inches
Rated RPM
2000 rpm
Power Output (hp)
181 hp

Transmission

Type
Manual
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
178.7
Width (in)
-
Height (in)
119.3
Operating Weight (lb)
14,454 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
