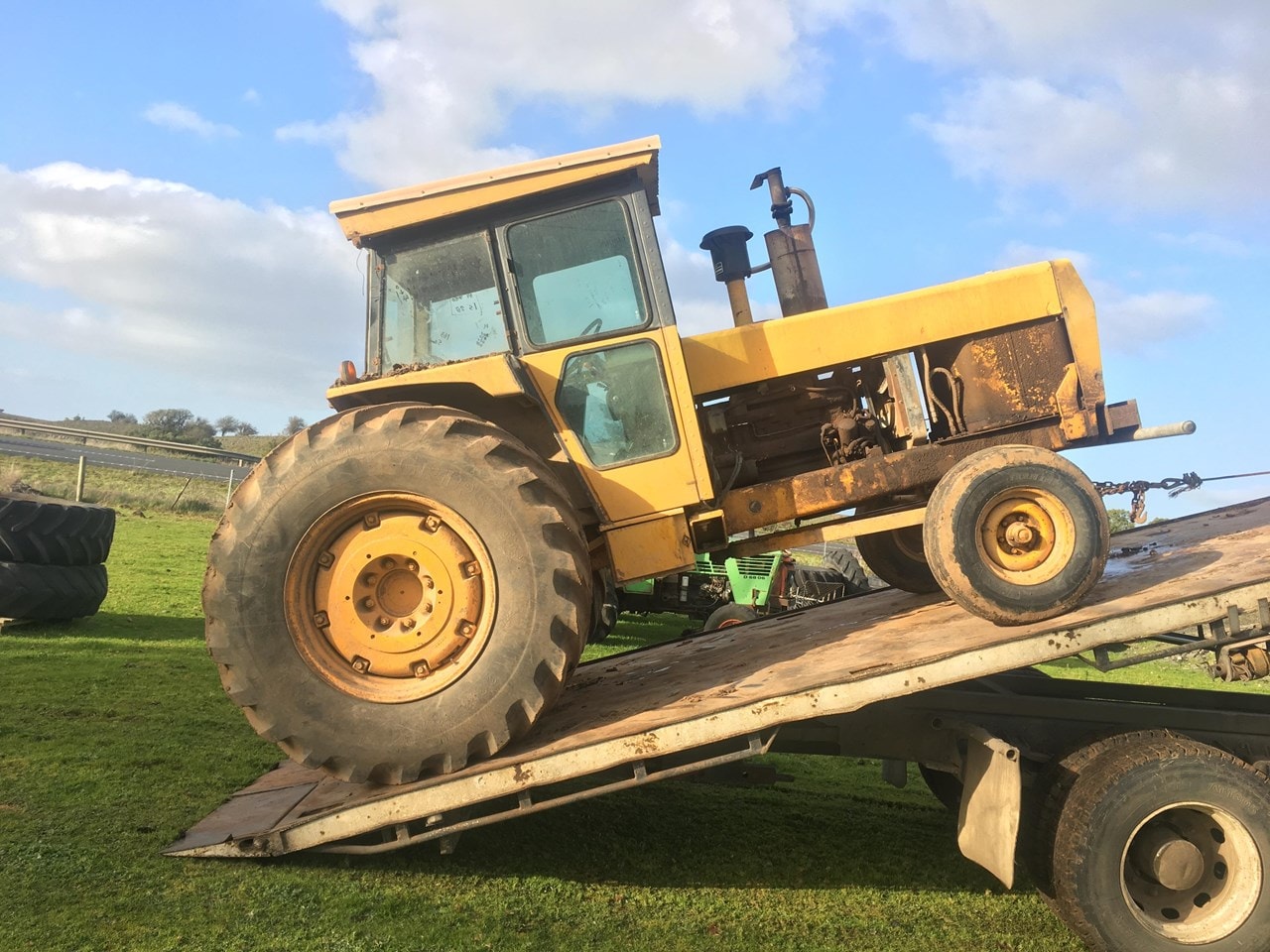

Chamberlain 4280

Last Updated: June 2024

Overview

The Chamberlain 4280, a part of the John Deere family, features a diesel 6-cylinder liquid-cooled 359 ci engine from John Deere. The engine boasts a power output of 111 hp and a rated RPM of 2500. The tractor's dimensions, with a length of 177.6 inches and a width of 88.6 inches, support its sturdy frame. In addition, its 108.1-inch-tall cab and an operating weight of 12478 pounds contribute to its robust design. The 4280 is equipped with a two-speed power-shift transmission, offering 12 forward and 4 reverse gears. Its open center hydraulic system further enhances its functionality. Unfortunately, details on the tractor's specific chassis, drive and steering types, PTO type, and certain engine specifications, such as cylinder orientation, valve configuration, and induction type remain unknown.
Show more...

Key Specifications

Power Output: 111

Transmission: Two-speed power shift

Operating Weight: 12478

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
6-359
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
6
Displacement (ci)
359
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
111

Transmission

Type
Two-speed power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
177.6
Width (in)
88.6
Height (in)
108.1
Operating Weight (lb)
12478

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
11
Rear Tire Diameter (in)
-
Rear Tire Width (in)
23.1
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II (Rear Type)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
