Challenger MT965C

Last Updated: July 2024

Overview

The Challenger MT965C is a powerful tractor manufactured by Challenger, offering a maximum power output of 501.68 HP (374.10 kW) at 1750 rpm from a Caterpillar C18 ACERT turbocharged, liquid-cooled diesel engine with 6 cylinders and a 24-valve configuration. The engine has a displacement of 1105 cubic inches, a bore of 5.709 inches, and a stroke of 7.205 inches. The tractor deploys a Caterpillar Powershift transmission with 16 forward gears and 4 reverse gears. It is equipped with six 520/85R46 tires on the front and rear, with detailed tire pressures provided in the test results. The operating weight is 60000 lbs when ballasted and 50890 lbs when unballasted. Detailed performance metrics, including fuel consumption rates, drawbar performance, and hydraulic system capabilities, are available from the independent test results.

Key Specifications

Power Output: 525

Transmission: Caterpillar Powershift

Operating Weight: 60000 (Ballasted), 50890 (Unballasted)

Fuel Type: Diesel (Specific fuel type provided in test results)

Image Gallery

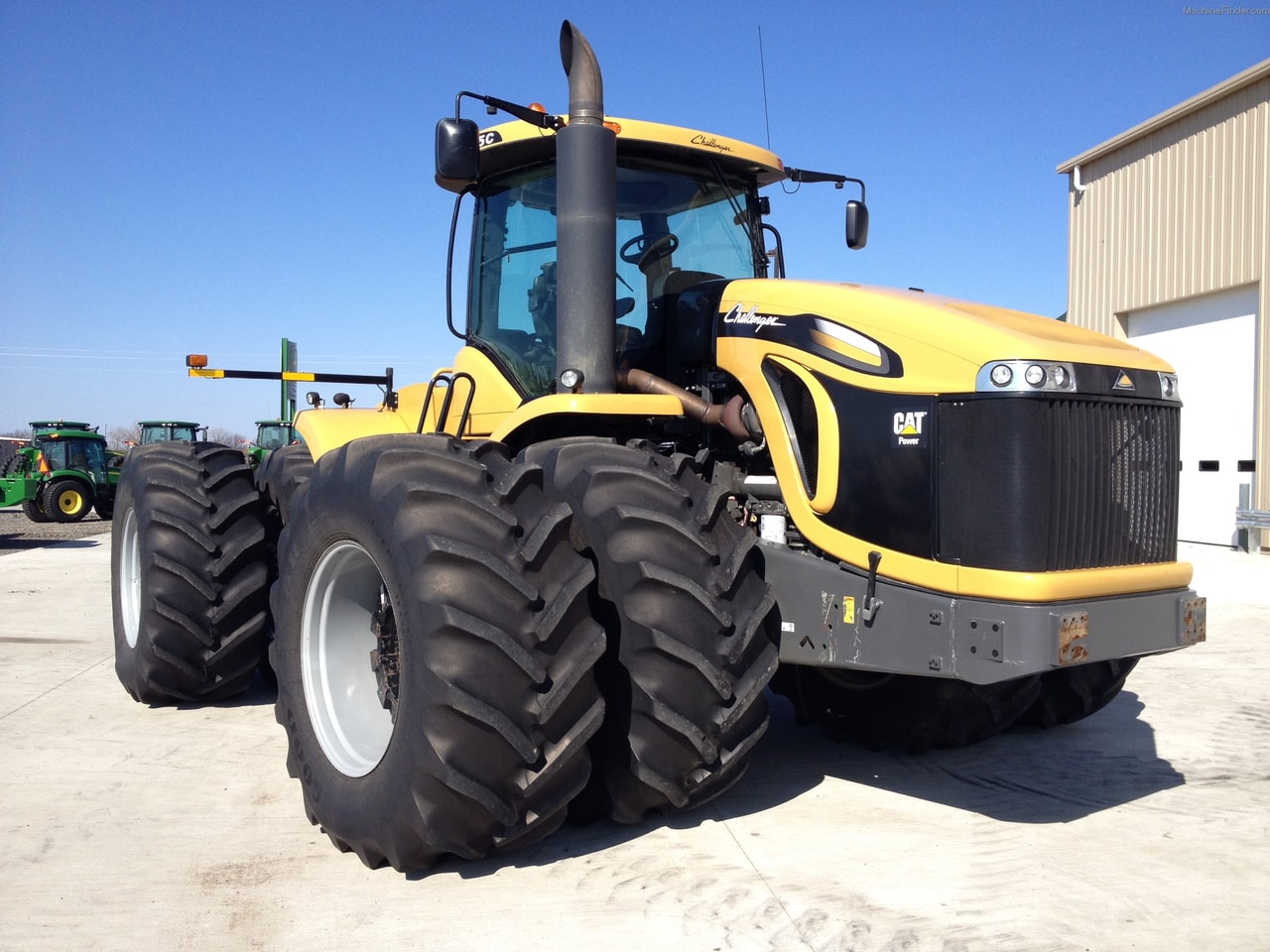

Challenger MT965C Tractor

Technical Specifications

Engine

Manufacturer: Caterpillar
Model: C18 ACERT
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 24-valve
Fuel Type: Diesel (Specific fuel type provided in test results)
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 1105
Bore (in): 5.709
Stroke (in): 7.205
Rated RPM: 2100
Power Output (hp): 525

Transmission

Type: Caterpillar Powershift
Forward Gears: 16
Reverse Gears: 4 (Specific speeds provided in test results)
Total Gears: -

Dimensions

Length (in): 298
Width (in): 200
Height (in): 151
Operating Weight (lb): 60000 (Ballasted), 50890 (Unballasted)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 46
Front Tire Width (in): 20.5
Rear Tire Diameter (in): 46
Rear Tire Width (in): 20.5
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: III/IVN
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed Center Pressure Flow Compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: June 2 - 19, 2008; March 18, 2009

Maximum Power and Fuel Consumption

Maximum Power: 501.68 HP (374.10 kW) at 1750 rpm
Fuel Consumption at Maximum Power: 28.40 Gal/hr (107.52 l/h) with a fuel efficiency of 0.397 lb/hp.hr (0.241 kg/kW.h)
Power Take-off Speed at Maximum Power: 1000 rpm at 2000 engine rpm

Drawbar Performance

Power in 6th Gear: 396.28 HP (295.51 kW) with a drawbar pull of 34846 lbs (155.00 kN) and a speed of 4.26 mph (6.86 km/h)
Fuel Consumption in 6th Gear: 27.89 Gal/hr (105.54 l/h) with a fuel efficiency of 0.444 lb/hp.hr (0.270 kg/kW.h)
Power at Reduced Engine Speed (9th Gear): 442.45 HP (329.94 kW) with a drawbar pull of 32592 lbs (144.98 kN) and a speed of 5.09 mph (8.19 km/h)

Torque and Engine Performance

Maximum Torque: 1728 lb.-ft. (2343 Nm) at 1303 rpm
Torque Rise: 56.9% with a power increase at 1750 rpm of 13.9%

Hydraulic Performance

Maximum Force Exerted: 20107 lbs (89.4 kN) at hitch points
Standard Pump Delivery Rate: 43.7 GPM (165.4 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 66.4 HP (49.5 kW) at delivery pressure of 3067 psi (211 bar)

NTTL.(2009).Nebraska OECD Tractor test 1930A for Challenger MT965C Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2356
