Challenger MT851

Last Updated: June 2024

Overview

The Challenger MT851 is a powerhouse of agricultural tractors. Manufactured by Challenger, a subsidiary of AGCO, this crawler tractor is easily recognized by its characteristic crawler chassis. The engine is an exceptional MAN D3876 – a turbocharged, liquid-cooled, 6-cylinder inline diesel engine with a displacement of 933.7 ci. This engine, which operates at a rated RPM of 1730, packs a serious punch with a rated power output of 504.2 hp. The tractor possesses a Continuously Variable Transmission (CVT), featuring infinite forward and reverse gears. The tractor’s dimensions are considerable, with a length of 266 inches, a width of 116.1 inches, and a height of 148 inches. The operating weight of the MT851 is approximately 42000 lbs.
Show more...

Key Specifications

Category: Agricultural

Power Output: 504.2

Transmission: Continuously-Variable Transmission

Operating Weight: 42000

Fuel Type: Diesel

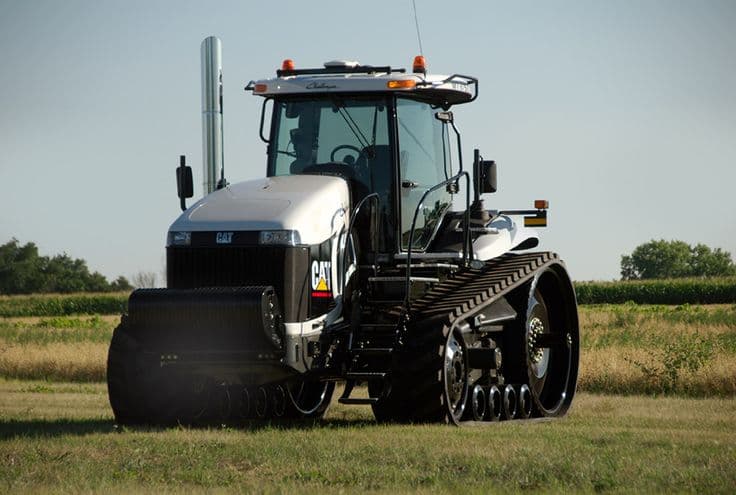

Image Gallery

Challenger MT851 Tractor Challenger MT851 Tractor Challenger MT851 Tractor Challenger MT851 Tractor Challenger MT851 Tractor Challenger MT851 Tractor

Challenger MT851 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
MAN
Model
D3876
Cooling Type
Liquid
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
933.7
Bore (in)
5.43
Stroke (in)
6.69
Rated RPM
1730
Power Output (hp)
504.2

Transmission

Type
Continuously-Variable Transmission
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
266
Width (in)
116.1
Height (in)
148
Operating Weight (lb)
42000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Pressure-Flow Compensated
