Challenger MT755D

Last Updated: July 2024

Overview

The Challenger MT755D is a powerful tractor with a maximum power output of 317.51 hp at 1800 rpm. It features a 6-cylinder AGCO POWER engine with 513 ci displacement and a compression ratio of 16.7 to 1. The tractor has a full power shift transmission with 16 forward and 4 reverse gears. Its liquid-cooling system includes two thermostats and a variable speed fan. The operating weight is 31520 lbs, and it delivers a maximum torque of 1039 lb-ft at 1501 rpm. The hydraulic system is closed-center pressure-flow compensated with a maximum force exerted of 17263 lbs.

Key Specifications

Power Output: 317.51

Transmission: Full Power Shift

Operating Weight: 31520

Fuel Type: Diesel

Image Gallery

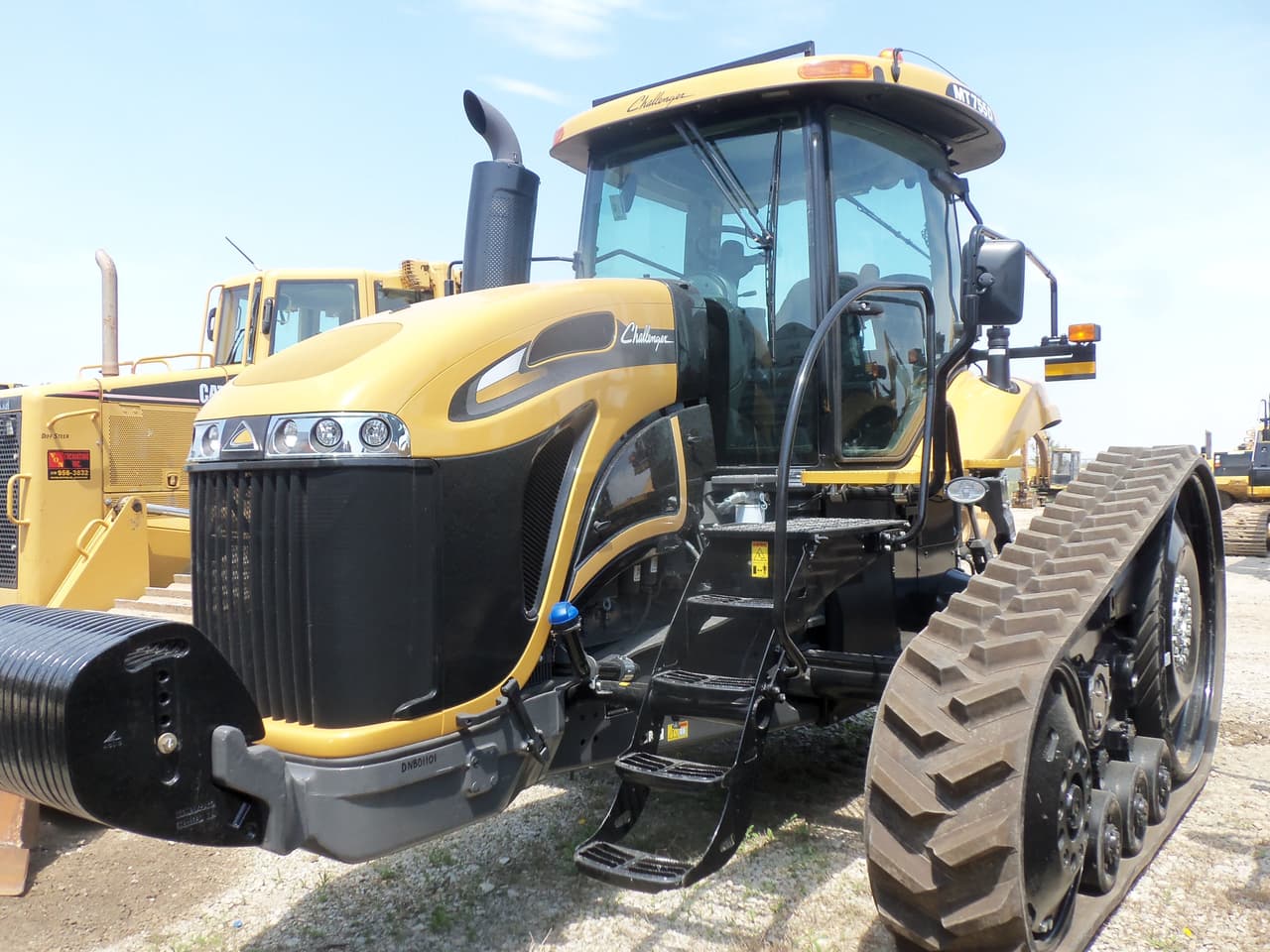

Challenger MT755D Tractor

Technical Specifications

Engine

Manufacturer: AGCO POWER
Model: -
Cooling Type: Liquid-cooled with two thermostats and variable speed fan
Cylinder Orientation: -
Valve Configuration: 24-valve
Fuel Type: Diesel
Induction Type: Turbocharged Air-to-air Intercooled
Cylinders: 6
Displacement (ci): 513
Bore (in): 4.37
Stroke (in): 5.709
Rated RPM: -
Power Output (hp): 317.51

Transmission

Type: Full Power Shift
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 31520

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Electro-hydraulic Differential
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/IIIN
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 Volts Electric Starter
Brake Type: Hydraulic Wet Disc
Hydraulic System Type: Closed-center Pressure-flow Compensated (PFC)
